Why Choose the Ilme CLC10LG IL-BRID Cover?

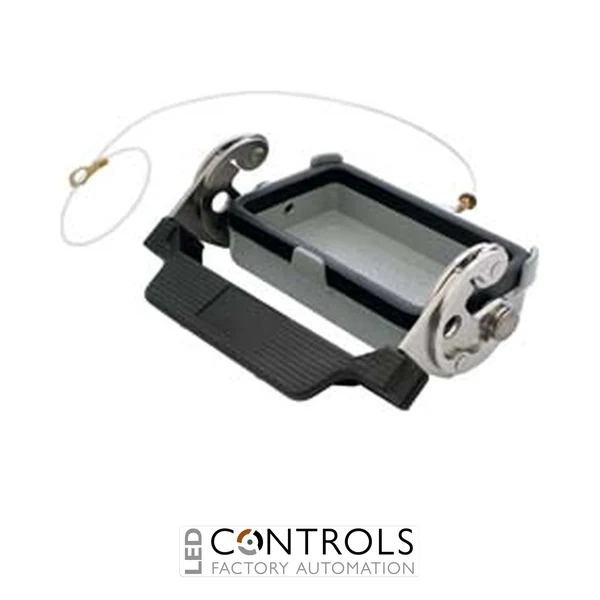

The Ilme CLC10LG is a heavy-duty metal protective cover with gasket and one IL-BRID lever, designed for compatible Ilme industrial connector enclosures in the size 57.27 format. Part of the Ilme IL-BRID enclosure system, it provides a durable closure for connector interfaces when the mating hood or connector is disconnected.
Manufactured from aluminium, the CLC10LG combines a robust metal cover with a sealing gasket, retaining loop and Ilme's single IL-BRID locking lever. It is intended for compatible enclosures equipped with two pegs and without their own gasket, providing a secure closure while the retaining loop helps keep the cover attached when it is opened.
The IL-BRID enclosure system is designed for demanding industrial environments, offering protection levels up to IP65 / IP66 / IP69 according to EN 60529 when the complete connector assembly is correctly installed. With an ambient temperature range of -40 °C to +125 °C and mechanical durability of at least 500 cycles, the CLC10LG is suited to machinery, automation and heavy-duty electrical installations.
Key Advantages
- Heavy-duty metal protective cover for Ilme size 57.27 connector enclosures.
- Single IL-BRID lever provides secure and convenient locking.
- Supplied with a sealing gasket for protected connector closure.
- Integrated retaining loop helps prevent the cover from being misplaced.
- IL-BRID system supports IP65 / IP66 / IP69 protection when correctly assembled.
- Designed for industrial temperatures from -40 °C to +125 °C.
Key Features
- Ilme IL-BRID series protective cover.
- Size 57.27 enclosure format.
- One IL-BRID locking lever.
- Supplied with gasket and retaining loop.
- Aluminium construction.
- Designed for enclosures with two pegs without gasket.
- Suitable for compatible Ilme size 57.27 connector systems.
- IP65 / IP66 / IP69 protection capability as part of a correctly assembled IL-BRID system.
- Mechanical life of at least 500 cycles.
- Suitable for heavy-duty industrial applications.
Heavy-Duty IL-BRID Connector Protection
The Ilme CLC10LG provides a protective closure for compatible size 57.27 connector enclosures when the mating connector is removed. Covering the exposed interface helps reduce the ingress of dust, moisture and other environmental contaminants, while the integrated gasket contributes to the sealing performance of the complete IL-BRID enclosure system.
The single IL-BRID lever provides a practical locking mechanism for repeated industrial use, while the retaining loop keeps the cover associated with the connector assembly when opened. This combination makes the CLC10LG particularly useful on machinery and installations where connectors are routinely disconnected for maintenance, transportation, equipment changeover or servicing.
Typical Applications
- Industrial machinery and machine-building equipment.
- Factory automation and production systems.
- Electrical control panels and industrial enclosures.
- Heavy-duty multipole connector installations.
- Packaging and processing machinery.
- Material-handling and conveyor systems.
- OEM machinery requiring protected detachable connections.
