Why Choose the Ilme CLC16LG IL-BRID Cover?

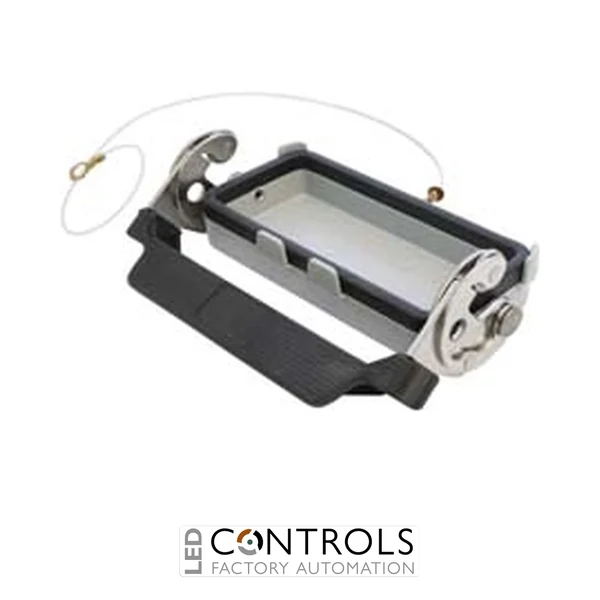

The Ilme CLC16LG is a robust aluminium protective cover with gasket and one IL-BRID locking lever, designed for Ilme industrial connector enclosures in the size 77.27 format. Part of the IL-BRID enclosure series, it provides a secure closing solution for compatible enclosures equipped with two locking pegs and no gasket.
The CLC16LG features Ilme's single IL-BRID lever system, engineered for secure and convenient connector closure. A fitted gasket supports environmental sealing, while the integrated loop provides practical retention of the cover with compatible hoods, helping prevent the protective cover from being misplaced during connection and maintenance operations.
Designed for demanding industrial environments, the CLC16LG supports IP65, IP66 and IP69 ingress protection when correctly assembled with compatible components. With an operating temperature range from -40 to +125 °C, UL Type 12, 4 and 4X enclosure performance and a mechanical life of at least 500 cycles, it provides dependable protection for machinery, automation and control-system connections.
Key Advantages
- Robust aluminium protective cover for size 77.27 connector enclosures.
- Single IL-BRID locking lever for secure and convenient closure.
- Supplied with an integrated gasket for environmental sealing.
- Integrated retaining loop for use with compatible hoods.
- Supports IP65, IP66 and IP69 ingress protection when correctly assembled.
- Designed for at least 500 mechanical operating cycles.
Key Features
- Ilme IL-BRID series protective cover.
- Compact size 77.27 format.
- Aluminium construction for industrial durability.
- 1 IL-BRID lever locking system.
- Complete with gasket.
- Complete with retaining loop.
- Designed for enclosures with 2 pegs without gasket.
- IP65 / IP66 / IP69 protection according to EN 60529 when correctly assembled.
- UL Type 12 / 4 / 4X enclosure performance.
- Operating temperature range of -40 to +125 °C.
Secure Industrial Connector Protection with IL-BRID
Protective covers help preserve industrial connector interfaces when equipment is disconnected, reducing exposure to contamination, moisture and accidental mechanical contact. The Ilme CLC16LG combines a durable aluminium cover with a gasket and IL-BRID locking mechanism to provide a secure closure for compatible size 77.27 enclosures.
The single-lever IL-BRID arrangement provides convenient operation while maintaining high environmental protection when the cover is correctly locked. Its retaining loop also allows the cover to remain associated with the connector assembly when removed, making the CLC16LG particularly practical for machinery and equipment requiring regular connection and disconnection.
Typical Applications
- Industrial machinery and automation systems.
- Protection of unmated industrial connector interfaces.
- Control panel and machine connections.
- Motor and actuator connection systems.
- Production and process equipment.
- OEM machinery using Ilme size 77.27 IL-BRID enclosures.
