Why Choose the ILME CLI10 Bulkhead Mounting Housing?

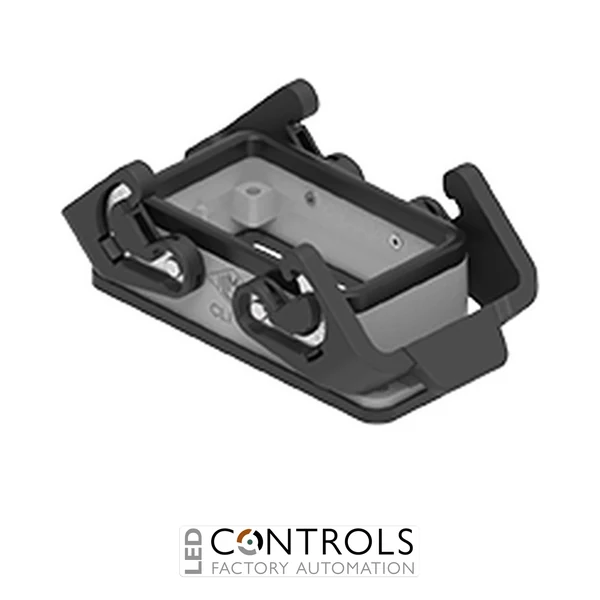

The ILME CLI10, manufacturer designation CLI 10, is a robust bulkhead mounting industrial connector housing designed for ILME size 57.27 connector assemblies. Part of the ILME IL-BRID series, it features two locking levers and provides a secure fixed connection interface for machinery, automation, control panels and other demanding industrial installations.
The CLI10 uses the IL-BRID two-lever locking system, with each lever manufactured from polyamide and reinforced by a stainless steel core. This arrangement provides secure connector retention while allowing straightforward mating and disconnection during equipment installation, servicing and maintenance.
Designed for bulkhead or panel mounting, the CLI10 has no cable entry and accepts compatible ILME size 57.27 inserts. It provides IP66 and IP69 protection when correctly assembled with compatible components, while its -40 °C to +125 °C operating temperature range supports use across demanding industrial environments.
Key Advantages
- Robust bulkhead mounting housing for size 57.27 connector assemblies.
- Two IL-BRID locking levers provide secure and convenient connector coupling.
- Lever construction combines polyamide with a stainless steel core.
- IP66 / IP69 protection for demanding industrial environments when correctly assembled.
- Wide -40 °C to +125 °C operating temperature range.
- Compatible with a broad range of ILME size 57.27 multipole and modular inserts.
Key Features
- ILME IL-BRID series connector enclosure.
- Bulkhead mounting configuration.
- Size 57.27 connector format.
- Two locking levers.
- IL-BRID lever design with polyamide and stainless steel core.
- Rubber sealing gasket.
- RAL 7040 grey finish.
- Without cable entry.
- IP66 / IP69 degree of protection.
- DNV and BV certified.
- UL and cUL recognised.
- Compatible with suitable ILME size 57.27 inserts, including multipole and MIXO modular configurations.
Secure IL-BRID Connectivity for Industrial Equipment
Bulkhead connector housings provide a fixed interface on machinery, control cabinets and industrial equipment, allowing detachable external cabling to connect to internal electrical circuits. The ILME CLI10 combines the widely used size 57.27 format with the IL-BRID locking system, making it suitable for a broad selection of compatible multipole and modular inserts.
The two reinforced locking levers securely retain the mating hood while remaining convenient to operate during maintenance and equipment changes. With IP66 and IP69 protection when correctly assembled, a rubber sealing gasket and an operating range extending from -40 °C to +125 °C, the CLI10 is designed for dependable service in demanding industrial environments.
Typical Applications
- Industrial machinery bulkhead connections.
- Factory automation equipment.
- Electrical control panels and cabinets.
- Production and packaging machinery.
- Machine power, control and signal connections.
- Robotics and automated production systems.
- ILME size 57.27 multipole and MIXO modular connector assemblies.
