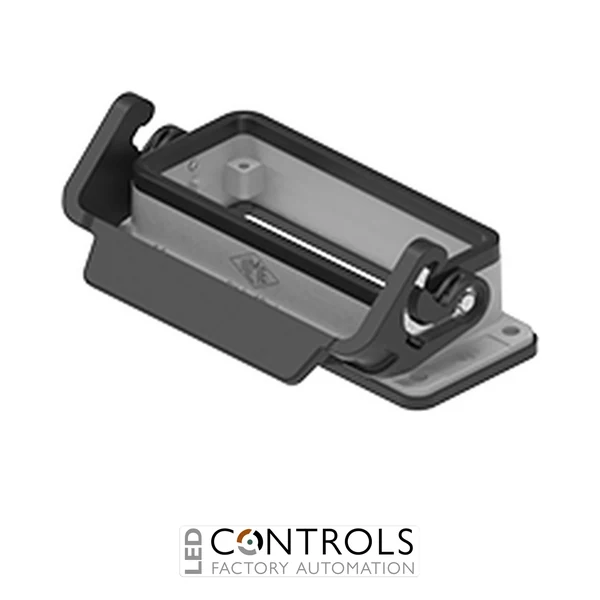

Why Choose the Ilme CLI16L IL-BRID Bulkhead Mounting Housing?
The Ilme CLI16L is a robust bulkhead mounting housing with one IL-BRID lever for heavy-duty rectangular connector systems in size 77.27. Designed as part of the Ilme IL-BRID enclosure range, it provides a secure panel-mounted interface for compatible inserts and hoods used throughout industrial machinery and automation installations.
Manufactured from durable aluminium, the CLI16L incorporates the Ilme IL-BRID single-lever locking system, which provides smooth and secure closure of the mating connector assembly. The housing is supplied without a cable entry because it is intended for bulkhead mounting, allowing electrical connections to pass directly through a machine panel or enclosure wall.
When correctly assembled with compatible components, the CLI16L provides IP65, IP66 and IP69 ingress protection. Its rugged construction, wide operating temperature capability and high level of environmental protection make it well suited to production machinery, material handling systems and other demanding industrial connection points.
Key Advantages
- Robust bulkhead mounting housing for size 77.27 heavy-duty connectors.
- Single IL-BRID lever provides secure and convenient connector locking.
- IP65 / IP66 / IP69 protection when correctly assembled with compatible components.
- Durable aluminium construction for demanding industrial environments.
- Bulkhead format provides a practical connector interface through control panels and machine enclosures.
- Compatible with a wide range of Ilme fixed and modular inserts in the 77.27 enclosure size.
Key Features
- Ilme IL-BRID series heavy-duty connector housing.
- Size 77.27 enclosure format.
- Bulkhead mounting configuration.
- One IL-BRID locking lever.
- No cable entry required in the housing.
- Aluminium enclosure construction.
- IP65 / IP66 / IP69 ingress protection with a correctly assembled compatible connector.
- Designed for a mechanical life of at least 500 mating cycles.
Reliable Panel-Mounted Connectivity for Industrial Machinery
Bulkhead connector housings provide a fixed interface through machine panels, cabinets and enclosure walls, allowing power, signal and control circuits to be connected and disconnected without disturbing internal wiring. The CLI16L combines this practical mounting arrangement with Ilme's IL-BRID lever system for dependable connection in industrial equipment.
The size 77.27 format accommodates numerous compatible Ilme insert families, including fixed-pole and MIXO modular configurations. This flexibility allows the housing to be incorporated into connector assemblies carrying power, control or signal circuits according to the selected insert.
Typical Applications
- Industrial machinery and automation systems.
- Machine control panels and electrical cabinets.
- Production and assembly equipment.
- Packaging and processing machinery.
- Material handling and conveyor systems.
- Heavy-duty power, signal and control connector interfaces.
