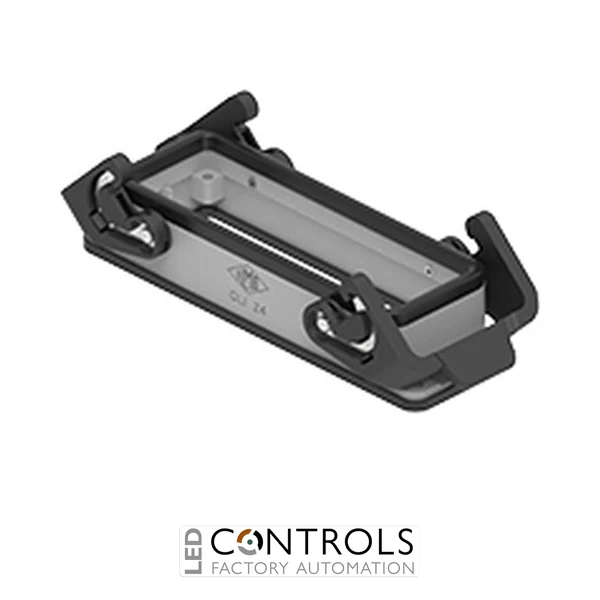

Why Choose the ILME CLI24 IL-BRID Bulkhead Housing?
The ILME CLI24 is a robust bulkhead mounting housing for industrial multipole connectors, designed to provide a secure panel-mounted interface for machinery, automation and electrical installations. Part of the ILME IL-BRID series, this housing uses the large size 104.27 format and incorporates two IL-BRID locking levers for dependable connector retention.
The CLI24 is designed without a cable entry for direct bulkhead or panel mounting, where the connector insert is installed into the fixed housing and mated with a compatible hood. Its two IL-BRID levers combine polyamide construction with a stainless steel core, providing a secure locking mechanism while supporting reliable operation in demanding industrial environments.
With IP66 and IP69 protection when correctly assembled with compatible components, the CLI24 is suitable for applications requiring a high degree of protection against dust and water. Its wide operating temperature range of -40 °C to +125 °C further supports use across demanding machinery, manufacturing and automation installations.
Key Advantages
- Robust bulkhead mounting housing for industrial multipole connectors.
- Large size 104.27 format supports compatible high-pole-count and modular inserts.
- Two IL-BRID locking levers provide secure connector retention.
- Lever construction combines polyamide with a stainless steel core.
- High IP66 / IP69 environmental protection when correctly assembled.
- Wide -40 °C to +125 °C operating temperature range for demanding industrial environments.
Key Features
- ILME IL-BRID series industrial connector enclosure.
- Size 104.27 bulkhead housing format.
- Two locking levers.
- IL-BRID levers manufactured from polyamide (PA) with stainless steel cores.
- Rubber gasket for environmental sealing.
- RAL 7040 grey finish.
- Bulkhead / panel mounting configuration.
- No cable entry in the housing.
Reliable Bulkhead Connectivity for Industrial Equipment
Bulkhead mounting housings such as the ILME CLI24 provide a fixed connector interface on machinery, control panels and electrical enclosures. Compatible multipole inserts are mounted within the housing, while the two IL-BRID levers securely retain a mating hood to create a robust detachable connection for industrial power, control and signal circuits.
The size 104.27 ILME enclosure platform supports a wide selection of compatible insert families, including high-pole-count and modular connector configurations. This makes the CLI24 particularly useful for complex machinery where multiple power, signal or data connections need to be grouped within one rugged industrial connector assembly.
Typical Applications
- Industrial machinery and factory automation systems.
- Control panels and electrical cabinets.
- Production and manufacturing equipment.
- Conveyor and material handling systems.
- Machine tools and automated production lines.
- High-pole-count and modular industrial connector assemblies.
