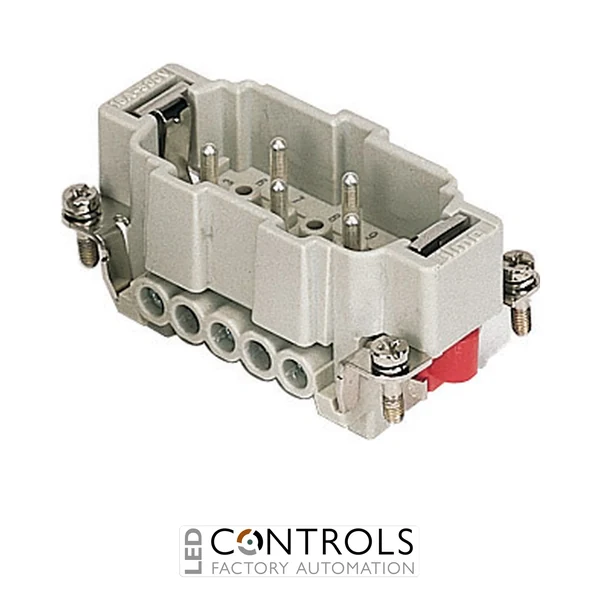

Why Choose the ILME CMEM03T Male Connector Insert?
The ILME CMEM03T is a robust male heavy-duty connector insert designed for dependable electrical connections in industrial machinery, automation equipment and control systems. Part of the ILME CME series, it provides 3 main poles plus protective earth together with 2 auxiliary poles, allowing power and auxiliary circuits to be incorporated within a single multipole connector assembly.
The CMEM03T uses reliable screw terminal connections for straightforward conductor termination with standard installation tools. Its male contact configuration is designed for use with the corresponding compatible female insert, while the durable polycarbonate insert body and silver-plated contacts support reliable service in demanding industrial environments.
With a 16 A rated current, an ILME specified rated voltage of 830 V for the main circuit and a 57.27 insert size, the CMEM03T provides a compact and versatile connection solution for machine builders, panel builders and industrial maintenance applications.
Key Advantages
- 3 main poles plus protective earth and 2 auxiliary poles for combined industrial connections.
- 16 A rated current for industrial power and control applications.
- Screw terminal connection provides secure and convenient conductor termination.
- Male insert configuration for mating with the corresponding compatible ILME female insert.
- Silver-plated contacts provide dependable electrical conductivity.
- Durable construction designed for industrial machinery and automation systems.
Key Features
- ILME CME series heavy-duty connector insert.
- 3 poles plus protective earth.
- 2 auxiliary poles.
- 16 A rated current.
- 830 V rated voltage for the main circuit.
- Screw terminal connection.
- 0.5–4 mm² conductor cross-section for the main contacts.
- Silver-plated contacts.
- 57.27 insert size.
- Polycarbonate insulating body with UL 94 V-0 flammability rating.
- Mechanical durability of up to 500 mating cycles.
Reliable Power and Auxiliary Connectivity for Industrial Equipment
Heavy-duty multipole connectors provide a convenient way to connect and disconnect multiple electrical circuits through a single industrial interface. The ILME CMEM03T combines three main contacts, protective earth and two auxiliary contacts, making it particularly useful where power and auxiliary control or signalling connections need to be accommodated within the same connector assembly.
The CME series screw terminal design simplifies installation while providing secure conductor retention. When correctly paired with a compatible female insert and installed within a suitable ILME hood or housing, the CMEM03T forms part of a durable modular connection system for machinery, automation equipment and industrial electrical installations.
Typical Applications
- Industrial machinery and production equipment.
- Factory automation and control systems.
- Motor and actuator connections.
- Machine building and OEM equipment.
- Control panels and electrical cabinets.
- Combined power and auxiliary control connections.
