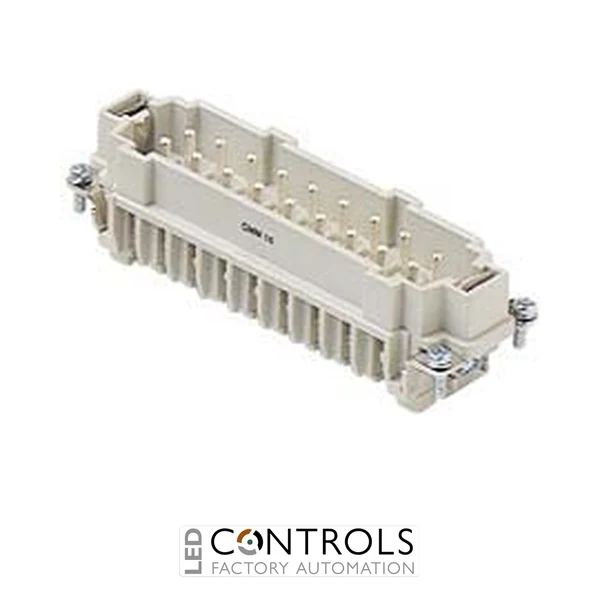

Why Choose the ILME CMEM16 Male Screw Insert?
The ILME CMEM16 is a robust male multipole connector insert designed for industrial power and control connections requiring reliable screw-terminal termination. Part of the ILME CME series, it provides 16 main poles plus protective earth and 2 auxiliary poles, allowing multiple power and auxiliary circuits to be combined within a single heavy-duty connector assembly.
The CMEM16 uses a screw terminal connection, providing straightforward and serviceable conductor termination without the need for separate crimp contacts. Its male contact configuration is designed to mate with the corresponding female insert and to fit compatible ILME heavy-duty connector housings and hoods.
With a rated current of 16 A and a rated voltage of 400/690 V for the main circuits, the CMEM16 provides dependable electrical performance for machinery, automation and industrial installations. The two auxiliary poles are rated at 16 A, 500 V, providing additional connections for control or signalling functions.
Key Advantages
- 16 main poles plus protective earth and 2 auxiliary poles in one connector insert.
- 16 A rated current for industrial power and control connections.
- 400/690 V main-circuit voltage rating for demanding electrical applications.
- Screw terminal connection enables straightforward and serviceable wiring.
- Two auxiliary poles provide additional connections for control or signalling circuits.
- Designed for compatible ILME size 104.27 heavy-duty connector housings and hoods.
Key Features
- ILME CME series connector insert.
- 16 main poles plus protective earth.
- 2 auxiliary poles.
- 16 A rated current.
- 400/690 V rated voltage for the main circuits.
- Auxiliary circuits rated at 16 A, 500 V.
- 6 kV rated impulse withstand voltage.
- Male contact configuration.
- Screw terminal connection.
- Size 104.27 connector format.
Multipole inserts such as the ILME CMEM16 allow numerous electrical circuits to be connected and disconnected through one heavy-duty connector assembly. Its screw terminals provide a practical and serviceable method of terminating conductors, making the insert particularly suitable for industrial machinery where dependable connections and efficient maintenance are important.
The combination of sixteen main poles, protective earth and two auxiliary poles allows power and secondary control or signalling circuits to be accommodated within the same connector. This can simplify machine wiring, reduce the number of separate connectors required and provide an organised interface between machinery, control panels and other industrial equipment.
Typical Applications
- Industrial machinery and production equipment.
- Factory automation and control systems.
- Motor and machine electrical connections.
- Electrical control panels and switchgear assemblies.
- Conveyor and material handling equipment.
- Industrial installations requiring combined power and auxiliary circuits.
