Why Choose the Ilme CMF16 Female Screw Insert?

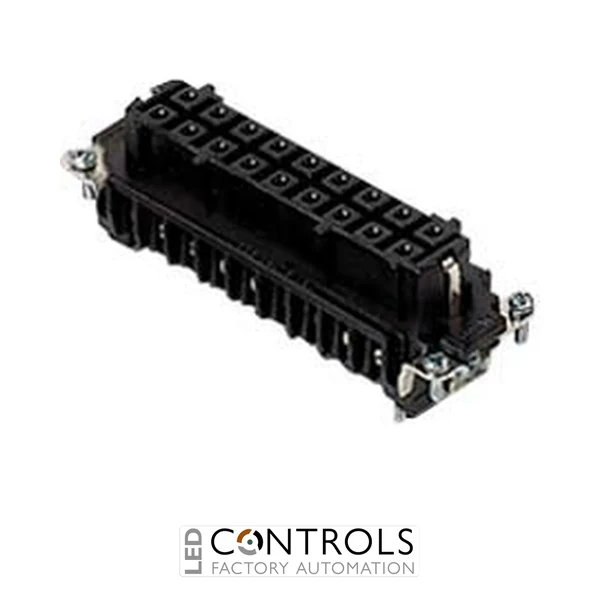

The Ilme CMF16 is a female multipole connector insert designed for industrial machinery and automation applications requiring multiple circuits within one detachable connector assembly. It provides 16 main poles + PE and 2 auxiliary poles, allowing power, control and auxiliary functions to be combined through a single industrial connection point.
The CMF16 uses screw terminal connections, providing straightforward field wiring without requiring dedicated crimp contacts or crimping tools. With a rated current of 16 A and a rated voltage of 500 V, it is suited to a broad range of industrial power and control applications.
Designed in the Ilme size 104.27 format, the CMF16 installs into compatible Ilme hoods and housings to create a protected multipole connector assembly. Its combination of numerous main contacts, protective earth and dedicated auxiliary contacts makes it particularly useful for complex machines where several electrical functions need to be disconnected and reconnected together.
Key Advantages
- Combines 16 main poles + PE and 2 auxiliary poles in one connector insert.
- Female connection configuration for mating with the corresponding male insert.
- Rated for 16 A at 500 V.
- Screw terminal connection provides straightforward conductor termination without crimping equipment.
- Large size 104.27 format supports complex multi-circuit machinery connections.
- Dedicated auxiliary contacts allow suitable control or signalling circuits to be incorporated alongside the main connections.
Key Features
- Ilme CM series industrial connector insert.
- Female insert configuration.
- 16 main poles + PE.
- 2 auxiliary poles.
- 16 A rated current.
- 500 V rated voltage.
- Screw terminal conductor connection.
- Size 104.27 multipole connector format.
- Suitable for combined power, control and auxiliary connections.
- Designed for installation in compatible Ilme industrial connector enclosures.
Reliable Multi-Circuit Screw Connections for Industrial Machinery
Complex industrial machinery often requires power, control and auxiliary circuits to pass through the same detachable interface. The Ilme CMF16 provides 16 main poles, protective earth and 2 auxiliary poles, allowing these circuits to be consolidated within one connector assembly and simplifying machine installation, servicing and replacement.
The screw terminal connection makes conductor installation practical for panel building and field wiring because conductors can be terminated directly at the insert without separate crimp contacts. When installed in a compatible Ilme size 104.27 enclosure, the CMF16 forms part of a robust, service-friendly industrial multipole connection system.
Typical Applications
- Industrial machinery and machine building.
- Factory automation systems.
- Electrical power and control connections.
- Packaging and processing machinery.
- Material handling and conveyor equipment.
- Production-line and modular machinery.
- Power, protective earth and auxiliary circuit interconnections.
- OEM equipment requiring detachable multi-circuit connections.
