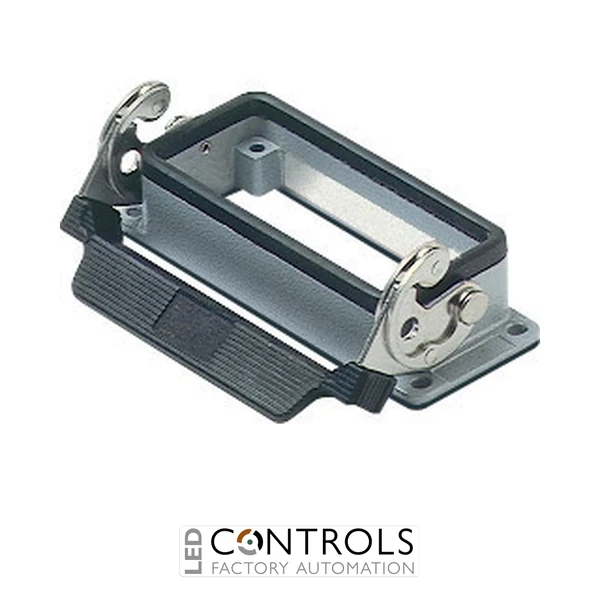

Why Choose the ILME CMI06L 830V Bulkhead Mounting Housing?
The ILME CMI06L is a robust bulkhead mounting housing designed for heavy-duty industrial connector assemblies. As part of the ILME 830V series, it provides a secure panel-mounted interface for compatible multipole connector inserts used in industrial machinery, automation systems and electrical equipment.
The CMI06L features a single locking lever for fast and secure coupling with a compatible connector hood. Its size 77.27 format and 77.5 × 27 mm insert mounting size make it suitable for corresponding ILME connector inserts, while its bulkhead configuration allows straightforward mounting to machine panels, electrical cabinets and equipment enclosures.
With IP65, IP66 and IP69 protection ratings when correctly assembled and locked with compatible components, the CMI06L is suitable for demanding industrial environments where protection against dust and water ingress is important. Its robust construction and wide operating temperature range of -40 °C to +125 °C provide dependable performance across a broad range of industrial applications.
Key Advantages
- Robust bulkhead mounting housing for industrial connector systems.
- Size 77.27 format for compatible ILME connector inserts.
- Single locking lever enables quick and secure connector coupling.
- IP65 / IP66 / IP69 protection when correctly assembled and locked with compatible components.
- Designed for direct panel and bulkhead mounting.
- No external cable entry required for its panel-mounted configuration.
- Wide -40 °C to +125 °C operating temperature range.
Key Features
- ILME 830V series.
- Bulkhead / panel mounting housing.
- Size 77.27 enclosure format.
- Single locking lever.
- 77.5 × 27 mm insert mounting size.
- IP65 / IP66 / IP69 degree of protection.
- RAL 7040 grey finish.
- Designed without cable entry.
- Suitable for heavy-duty industrial connector assemblies.
Reliable Panel-Mounted Industrial Connectivity
Bulkhead mounting housings such as the ILME CMI06L provide a fixed connection point between industrial equipment and detachable heavy-duty connector assemblies. The housing mounts directly to a panel or machine enclosure and supports a compatible connector insert, allowing electrical circuits to be connected and disconnected efficiently during installation, servicing and equipment replacement.
The CMI06L's single-lever locking mechanism simplifies connector engagement while maintaining a secure mechanical connection. Combined with compatible ILME hoods and inserts, the housing provides a durable industrial connectivity solution with high levels of environmental protection for machinery and automation installations.
Typical Applications
- Industrial machinery and production equipment.
- Factory automation and control systems.
- Electrical control panels and machine cabinets.
- Motor, drive and actuator connection systems.
- Conveyor and material handling equipment.
- Robotics and automated manufacturing systems.
- Removable machinery and equipment connections.
