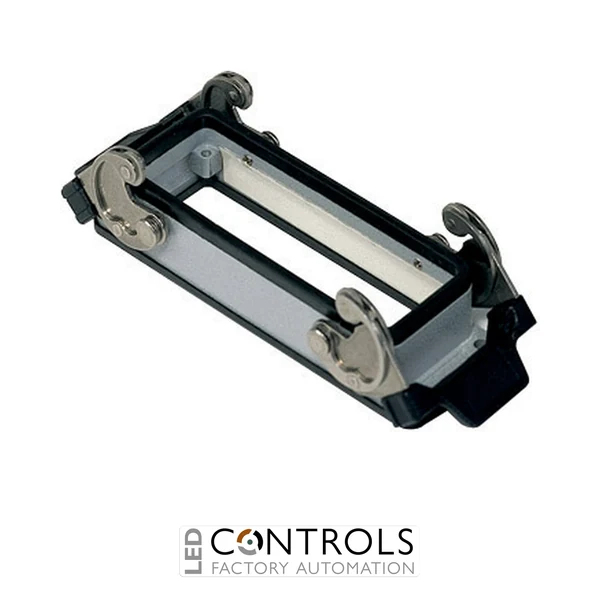

Why Choose the ILME CMI16 Bulkhead Mounting Housing?
The ILME CMI16 is a robust bulkhead mounting housing designed for heavy-duty multipole connector installations in industrial machinery, automation equipment and control systems. Part of ILME's 830 V housing series, it features a 104.27 size format and provides a secure panel-mounted interface for compatible ILME connector inserts.
The CMI16 incorporates two locking levers to provide secure mechanical engagement with a compatible mating hood. Its bulkhead mounting configuration has no cable entry, allowing the housing to be mounted directly onto machinery, control panels and electrical enclosures while the wiring is routed from inside the equipment.
With IP65, IP66 and IP69 protection when correctly assembled with compatible components, the CMI16 is designed for demanding industrial environments where resistance to dust and water ingress is important. Its durable construction, wide -40 to +125 °C operating temperature range and compact 104.27 format make it a dependable choice for industrial connector installations.
Key Advantages
- Robust bulkhead mounting housing for heavy-duty industrial connectors.
- 104.27 housing size for compatible ILME connector inserts.
- Two locking levers provide secure and convenient connector engagement.
- IP65, IP66 and IP69 protection when correctly assembled with compatible components.
- Designed as part of the ILME 830 V series.
- Wide -40 to +125 °C operating temperature range for demanding installations.
Key Features
- ILME CMI16 heavy-duty connector housing.
- Bulkhead / panel mounting configuration.
- 104.27 size.
- Two locking levers.
- Designed for ILME 830 V series applications.
- IP65 / IP66 / IP69 degree of protection when correctly assembled.
- No cable entry for direct bulkhead installation.
- RAL 7040 grey finish.
- 180 g weight.
- Operating temperature range from -40 to +125 °C.
- RoHS compliant construction.
Reliable Bulkhead Connectivity for Industrial Equipment
Bulkhead connector housings provide a secure mounting interface for detachable electrical connections on machinery, control panels and industrial enclosures. The ILME CMI16 allows a compatible 104.27 size insert to be mounted directly to the equipment while its two-lever closing system provides secure mechanical engagement with the corresponding mating connector.
The CMI16 is particularly suited to industrial installations where environmental protection and convenient equipment disconnection are important. When correctly assembled with compatible ILME components, its IP65, IP66 and IP69 protection capability helps safeguard the connector interface against dust and water ingress in demanding operating environments.
Typical Applications
- Industrial machinery and production equipment.
- Factory automation systems.
- Electrical control panels and cabinets.
- Machine building and OEM equipment.
- Motor, actuator and equipment interconnections.
- Industrial power and control connector interfaces.
