Why Choose the Ilme CMP06 830V Surface Mounting Housing?

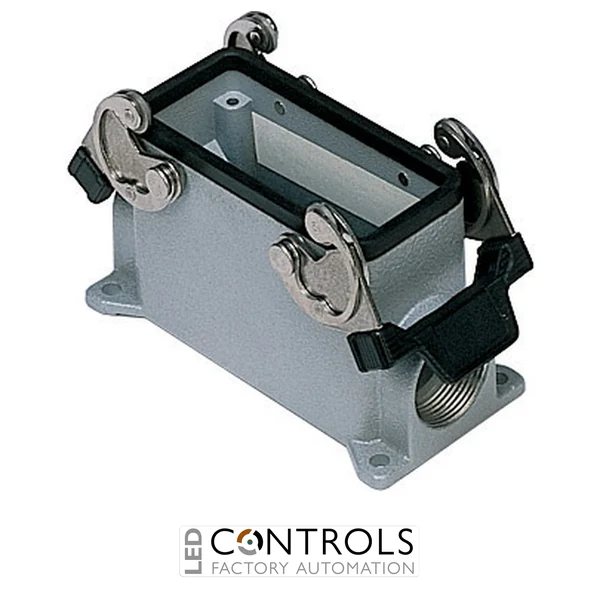

The Ilme CMP06 is a heavy-duty surface mounting connector housing with two locking levers, designed for Ilme rectangular multipole connector systems in size 77.27. Part of the Ilme 830V series, it features a Pg21 cable entry and provides a robust fixed connection point for industrial machinery, automation and electrical equipment.
The CMP06 uses a dual-lever locking system for secure and balanced mating with a compatible connector hood. Its surface mounting configuration allows the housing to be installed directly onto machinery, equipment frames and enclosure surfaces, while the Pg21 entry provides a practical route for the fixed cable connection.
When correctly assembled and locked with compatible Ilme components, the CMP06 provides IP65, IP66 and IP69 ingress protection. With an operating temperature range of -40 to +125 °C, the housing is designed for reliable service across demanding industrial environments.
Key Advantages
- Size 77.27 surface mounting housing for heavy-duty industrial connectors.
- Two locking levers provide secure and balanced connector closure.
- Pg21 cable entry supports straightforward fixed cable installation.
- IP65, IP66 and IP69 protection when correctly assembled with compatible components.
- Wide -40 to +125 °C operating temperature range.
- Part of Ilme's 830V series for professional industrial connector installations.
Key Features
- Ilme CMP06 surface mounting housing.
- 830V series enclosure.
- Size 77.27 connector format.
- Two locking levers.
- Single Pg21 cable entry.
- RAL 7040 grey finish.
- IP65 / IP66 / IP69 ingress protection when correctly assembled.
- Suitable for compatible Ilme heavy-duty multipole inserts and mating connector components.
Reliable Surface-Mounted Connectivity for Industrial Equipment
Surface mounting connector housings provide a fixed termination point for detachable industrial cable assemblies. The Ilme CMP06 can be mounted directly onto machinery, equipment structures or electrical enclosures, allowing compatible cable-side connectors to be connected and disconnected without disturbing the permanent wiring.
Its dual-lever closure helps maintain secure mechanical engagement across the connector interface, while the Pg21 entry provides a dedicated route for the fixed cable. Combined with compatible Ilme inserts and mating components, the CMP06 forms a robust connection system for power, control and signal circuits.
Typical Applications
- Industrial machinery and automation systems.
- Machine tools and production equipment.
- Packaging and processing machinery.
- Material handling and conveyor systems.
- Electrical control and distribution equipment.
- Heavy-duty power, control and signal connector assemblies.
