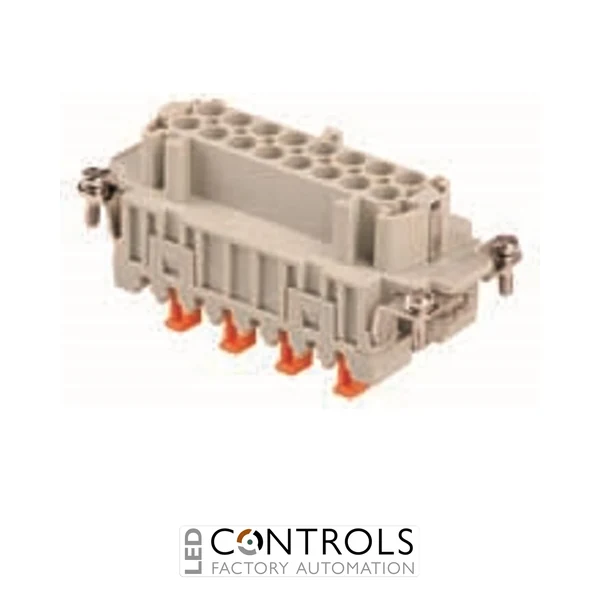

Why Choose the Ilme CMSHF06 Squich Female Insert 6P+E +2 Aux 16A?
The Ilme CMSHF06 is a high-performance Squich female connector insert with 6 poles plus earth and 2 auxiliary contacts designed for reliable connections in heavy-duty rectangular connector systems. Part of the advanced Ilme CMSH Squich series, this insert provides fast and secure spring clamp termination for industrial power, control and signal applications.
Featuring Ilme’s Squich spring connection technology, the CMSHF06 enables quick installation without traditional screw tightening while maintaining excellent conductor retention and electrical reliability. Its compact 77.27 size format makes it suitable for demanding automation, machinery and industrial electrical installations.
With a 16 A rated current, 6 power poles plus earth and 2 auxiliary contacts, the Ilme CMSHF06 provides a flexible female connection solution where efficient wiring and dependable performance are required.
Key Advantages
- Reliable Squich female insert for heavy-duty rectangular connectors.
- 6 poles plus earth with 2 auxiliary contacts for combined power and control connections.
- 16 A spring clamp connection enables fast and secure wiring.
- Tool-free termination reduces installation time.
- Designed for 77.27 size Ilme connector housings.
- Suitable for industrial automation and machinery applications.
Key Features
- Ilme CMSH Squich series female insert.
- Model: CMSHF06.
- Product type: Female connector insert.
- Contact configuration: 6 poles + earth + 2 auxiliary contacts.
- Rated current: 16 A.
- Connection technology: Squich spring clamp.
- Connection type: Female connection.
- Connector size: 77.27.
- Suitable for high-density industrial connector assemblies.
Reliable Power and Control Connections for Industry
The Ilme CMSHF06 female insert combines power and auxiliary signal contacts in a single compact connector solution, helping simplify industrial wiring layouts while maintaining reliable electrical performance. The Squich spring connection system provides consistent contact pressure and efficient installation.
Designed for professional machine builders and automation engineers, the CMSH series supports demanding applications where secure connections, reduced maintenance and long service life are essential.
Typical Applications
- Industrial automation machinery.
- Machine building and OEM equipment.
- Control panels and electrical cabinets.
- Robotics and automated production systems.
- Industrial power and signal distribution.
- Manufacturing and process equipment.
