Why Choose the ILME CMSHF10 Squich Female Insert?

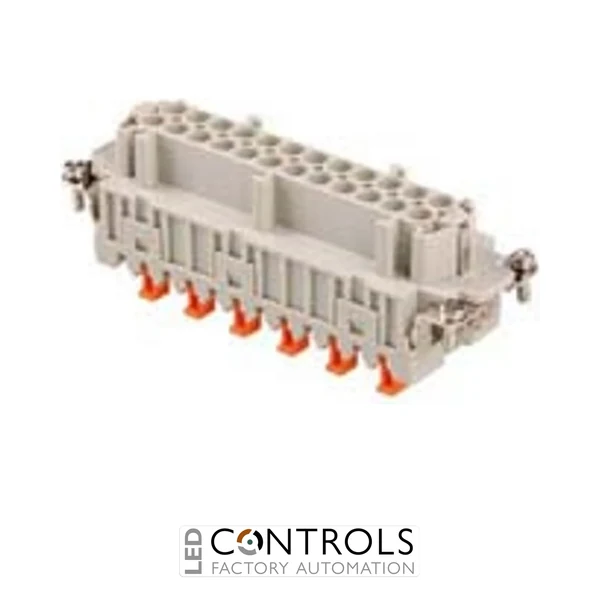

The ILME CMSHF10 is a high-performance Squich female insert designed for reliable electrical connections in industrial multipole connector systems. Part of the advanced ILME Squich series, this insert provides a fast and secure connection solution using spring clamp technology for efficient wiring in demanding automation and industrial environments.
Designed for use with compatible ILME connector housings, the CMSHF10 combines compact construction with excellent electrical performance. Its Squich connection system enables quick installation while maintaining stable contact pressure, reducing wiring time and improving connection reliability in industrial applications.
Featuring 10 poles plus earth with 2 auxiliary contacts and a 16 A current rating, the CMSHF10 female insert is suitable for Size 104.27 rectangular heavy-duty connectors used in machinery, control panels and automated equipment.
Key Advantages
- ILME Squich female insert designed for fast and reliable industrial connections.
- 10 pole + earth configuration with 2 auxiliary contacts for flexible signal and power integration.
- 16 A rated current suitable for industrial control and automation applications.
- Spring clamp Squich technology reduces installation time and provides secure wiring.
- Compatible with ILME Size 104.27 connector systems.
- Robust design for demanding industrial environments.
Key Features
- ILME CMSHF10 Squich female insert.
- 10 poles + earth + 2 auxiliary contacts.
- 16 A electrical rating.
- Size 104.27 heavy-duty connector format.
- Female connection configuration.
- Squich spring clamp connection technology.
- Designed for industrial multipole connector applications.
- Suitable for use with compatible ILME connector housings.
ILME Squich inserts are engineered to provide dependable electrical connections for industrial machinery and automation systems. The spring clamp connection method offers a practical alternative to traditional screw connections by simplifying installation while maintaining secure conductor retention.
The CMSHF10 female insert is designed for professional industrial applications where space efficiency, connection reliability and fast assembly are essential. It is commonly integrated into machine control systems, automation equipment and electrical cabinets.
Typical Applications
- Industrial automation equipment.
- Machine building and OEM systems.
- Control panels and electrical cabinets.
- Robotics and manufacturing machinery.
- Industrial power and signal connections.
- Process control equipment.
