Why Choose the ILME CMSHF 10 N SQUICH Female Insert?

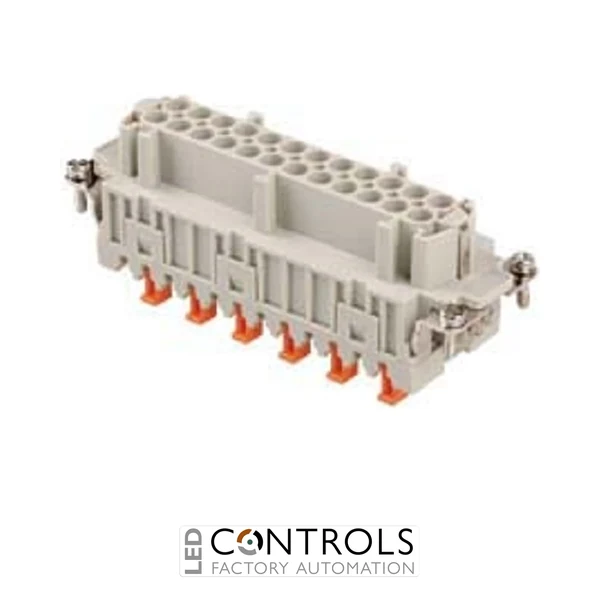

The ILME CMSHF 10 N is a high-performance female industrial connector insert from the ILME CMSH series, featuring SQUICH® spring terminal technology for fast, tool-free conductor termination. Designed for heavy-duty rectangular multipole connectors, this insert provides 10 main poles, 2 auxiliary poles and PE, with pole numbering 25–48 for use within size 104.62 connector assemblies.
SQUICH® spring terminal technology simplifies panel building and machine wiring by allowing conductors to be connected without conventional screw terminals. The actuator-button design provides a secure spring-clamp connection while reducing installation time and helping maintain consistent electrical contact in industrial environments.
The CMSHF 10 N is rated at 16 A and 830 V for its main contacts, with auxiliary contacts rated at 16 A and 500 V. It accepts conductor sizes from 0.14–2.50 mm² or AWG 26–14, uses turned silver-plated contacts and is designed for ILME size 104.62 enclosures.
Key Advantages
- Industrial female connector insert with SQUICH® tool-free spring terminals.
- 10 main poles plus 2 auxiliary poles and PE for multipole power and control connections.
- 16 A, 830 V main-contact rating for demanding industrial applications.
- Accepts conductors from 0.14–2.50 mm² without conventional screw termination.
- Turned silver-plated contacts provide reliable low-resistance electrical connections.
- Designed for size 104.62 ILME heavy-duty connector enclosures.
Key Features
- ILME CMSH series female insert.
- SQUICH® spring terminal connection without tools.
- 10 main poles + 2 auxiliary poles + PE.
- 16 A rated current.
- 830 V rated voltage for main contacts.
- 500 V auxiliary-contact rating.
- 8 kV rated impulse withstand voltage for main contacts.
- Conductor capacity of 0.14–2.50 mm² / AWG 26–14.
- Turned silver-plated copper-alloy contacts.
- Durability of at least 500 mating cycles.
Fast and Reliable Industrial Connector Termination
ILME SQUICH® technology uses spring-clamp terminals with actuator buttons to provide secure conductor termination without conventional terminal screws. This helps reduce wiring time during machine building, control-panel assembly and maintenance while delivering a dependable electrical connection suitable for industrial equipment.
The CMSH series is designed for modular heavy-duty connector applications requiring dependable power and control connections in compact rectangular enclosures. When fitted into a suitable ILME enclosure, the CMSHF 10 N provides a robust connection solution for machinery, automation equipment and industrial electrical installations.
Typical Applications
- Industrial machinery and machine building.
- Factory automation and production equipment.
- Control panels and electrical cabinets.
- Robotics and automated handling systems.
- Motor, power and control connections.
- Packaging and processing machinery.
- Heavy-duty multipole connector assemblies.
