Why Choose the ILME CMSHF03 SQUICH Female Insert?

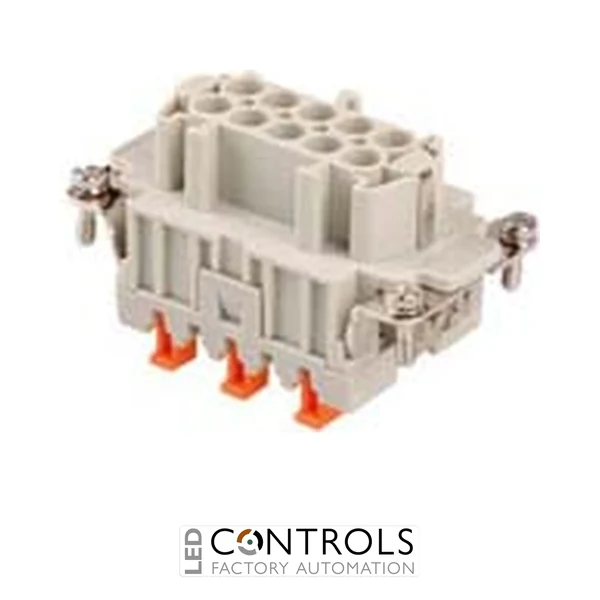

The ILME CMSHF03 is a high-performance female multipole connector insert designed for industrial power and control connections requiring fast, reliable conductor termination. Part of the ILME CMSH 16 A series, it provides 3 main poles plus protective earth and 2 auxiliary poles, allowing power and auxiliary circuits to be combined within a single heavy-duty connector assembly.
The CMSHF03 features ILME's SQUICH® tool-free spring terminal connection, enabling conductors to be terminated without conventional screw tightening or crimping tools. The spring-clamp system accepts conductors from 0.14–2.5 mm² and provides consistent contact pressure, helping simplify installation and maintenance while delivering dependable electrical connections in industrial environments.
With a rated current of 16 A and rated voltage of 830 V, the CMSHF03 is suitable for demanding machinery and automation applications. Its female silver-plated contacts and size 57.27 format make it suitable for compatible ILME heavy-duty connector housings and hoods.
Key Advantages
- 3 main poles plus protective earth and 2 auxiliary poles in one connector insert.
- 16 A rated current for industrial power and control applications.
- 830 V rated voltage for demanding electrical installations.
- SQUICH® tool-free spring termination simplifies installation and maintenance.
- Accepts conductors from 0.14–2.5 mm² for flexible industrial wiring.
- Size 57.27 format for compatible ILME heavy-duty connector enclosures.
Key Features
- ILME CMSH series female connector insert.
- 3 main poles plus protective earth.
- 2 auxiliary poles for additional control or signalling circuits.
- 16 A rated current.
- 830 V rated voltage.
- SQUICH® spring terminal connection without tools.
- Conductor capacity of 0.14–2.5 mm².
- Compatible with AWG 26–14 conductors.
- Silver-plated female contacts.
- Size 57.27 connector format.
The ILME SQUICH® connection system uses spring terminals to provide secure conductor clamping without traditional screw-terminal tightening. This allows faster wiring while maintaining consistent contact pressure, making the CMSHF03 particularly useful for industrial equipment where efficient assembly, dependable connections and straightforward maintenance are important.
By combining three main contacts, protective earth and two auxiliary contacts in one insert, the CMSHF03 enables power and secondary control or signalling circuits to share a single heavy-duty connector interface. This helps simplify machine wiring and provides a compact, serviceable connection between machinery, control panels and automation equipment.
Typical Applications
- Industrial machinery and production equipment.
- Factory automation and control systems.
- Motor and machine electrical connections.
- Electrical control panels and switchgear assemblies.
- Conveyor and material handling systems.
- Industrial equipment requiring combined power and auxiliary connections.
