Why Choose the Ilme CMSHM06 SQUICH® Male Insert?

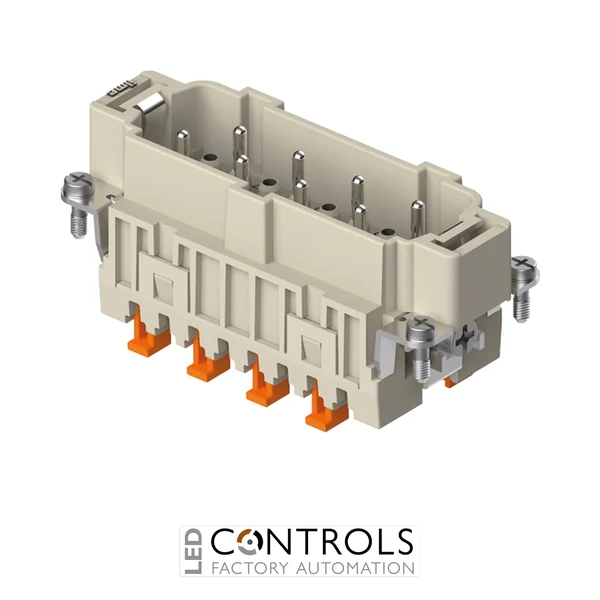

The Ilme CMSHM06 is a heavy-duty male multipole connector insert from the CMSH series, combining 6 main poles, protective earth and 2 auxiliary poles in a compact size 77.27 format. Rated at 16 A and 830 V for the main contacts, it is designed for demanding industrial power, control and signalling connections.
A key feature of the CMSHM06 is Ilme's SQUICH® spring terminal connection without tools. Actuator buttons allow conductors to be terminated quickly without conventional screw tightening, helping simplify assembly and maintenance while providing a secure spring-clamp electrical connection.
The insert is supplied with male silver-plated contacts and incorporates two auxiliary poles alongside the six main poles and protective-earth connection. This arrangement enables supplementary control, signalling or interlocking circuits to be carried through the same heavy-duty connector assembly.
Key Advantages
- 6 main poles + PE + 2 auxiliary poles in one compact insert.
- 16 A, 830 V main contact rating for demanding industrial connections.
- SQUICH® tool-free spring terminals simplify conductor installation.
- Auxiliary contacts support additional control, monitoring or signalling circuits.
- Silver-plated male contacts provide dependable electrical connectivity.
- Size 77.27 format fits a wide selection of compatible Ilme heavy-duty enclosures.
Key Features
- Ilme CMSH series male connector insert.
- 6 poles + PE + 2 auxiliary poles.
- SQUICH® spring terminal connection without tools.
- 16 A rated current.
- 830 V rated voltage for the main contacts.
- 500 V auxiliary contact rating.
- Silver-plated contacts.
- Size 77.27 enclosure compatibility.
Fast and Reliable SQUICH® Spring Connection Technology
Ilme SQUICH® technology uses spring terminals with actuator buttons to simplify conductor termination without conventional screw-terminal tightening. This makes installation faster and reduces the tooling required during machine building, panel assembly and field maintenance while retaining the benefits of a secure spring connection.
With six main poles plus two auxiliary poles and protective earth, the CMSHM06 provides a versatile interface for applications requiring power or primary control circuits together with supplementary signalling or interlocking connections. Its size 77.27 format can be installed in a broad range of compatible Ilme heavy-duty connector enclosures selected to suit the required environmental protection and mounting arrangement.
Typical Applications
- Industrial machinery and automation systems.
- Machine tools and production equipment.
- Packaging and processing machinery.
- Material handling and conveyor systems.
- Power, control and auxiliary signalling circuits.
- Heavy-duty multipole connector assemblies requiring rapid spring termination.
