Why Choose the ILME CMSHM10N SQUICH® Male Insert?

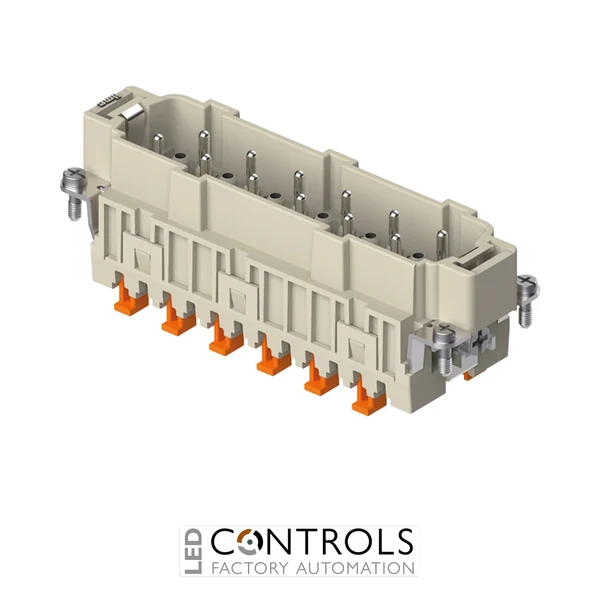

The ILME CMSHM10N is a high-performance male industrial connector insert designed for reliable power and auxiliary connections in machinery, automation systems and heavy-duty electrical equipment. As part of the ILME CMSH series, it combines 10 main poles, 2 auxiliary poles and protective earth with ILME's SQUICH® connection technology, providing fast and dependable conductor termination.
The CMSHM10N uses SQUICH® spring terminal connection without tools, allowing stripped conductors to be inserted into the terminals before the actuator buttons are pressed to complete the connection. This technology provides a practical alternative to conventional screw terminals while maintaining consistent spring pressure on the conductors, making it particularly suitable for machinery and automation installations where vibration resistance and efficient wiring are important.
Designed for size 104.62 connector assemblies, the CMSHM10N is the numbered 25-48 version and accepts conductors from 0.14 mm² to 2.5 mm². Its main contacts are rated at 16 A, 830 V, while the two auxiliary contacts are rated at 16 A, 500 V, enabling power and auxiliary control or signalling circuits to be combined within one heavy-duty connector assembly.
Key Advantages
- Combines 10 main poles + 2 auxiliary poles + PE in one industrial connector insert.
- 16 A, 830 V main-contact rating for demanding industrial electrical connections.
- SQUICH® spring terminal technology enables fast connection without terminal screws.
- Accepts conductors from 0.14 mm² to 2.5 mm².
- Two auxiliary contacts rated at 16 A, 500 V for control and signalling circuits.
- Spring terminals maintain consistent conductor pressure for reliable operation in vibration-prone machinery.
- Durable polycarbonate construction with turned silver-plated contacts.
- Designed for at least 500 mating cycles for dependable repeated connection and disconnection.
Key Features
- ILME CMSH series male insert.
- 10 poles + 2 auxiliary poles + protective earth.
- 16 A rated current.
- 830 V main-contact rated voltage.
- SQUICH® spring terminal connection without tools.
- Size 104.62 enclosure format.
- Contact numbering 25-48.
- 0.14–2.5 mm² conductor range.
- Turned silver-plated contacts.
- Self-extinguishing UL 94 V-0 polycarbonate insulating body.
Fast and Reliable SQUICH® Industrial Connections
ILME SQUICH® technology is designed to simplify industrial connector wiring without conventional terminal screws. A stripped conductor is inserted fully into the appropriate terminal and the actuator button is pressed to close the spring terminal, creating a secure electrical connection with consistent contact pressure.
The CMSHM10N combines this connection technology with ten main power contacts, two auxiliary contacts and protective earth. This makes it well suited to machinery where power, control, signalling and interlocking circuits need to be incorporated within a single removable connector assembly while maintaining reliable electrical performance.
