Why Choose the ILME CMSHM03 SQUICH Male Insert?

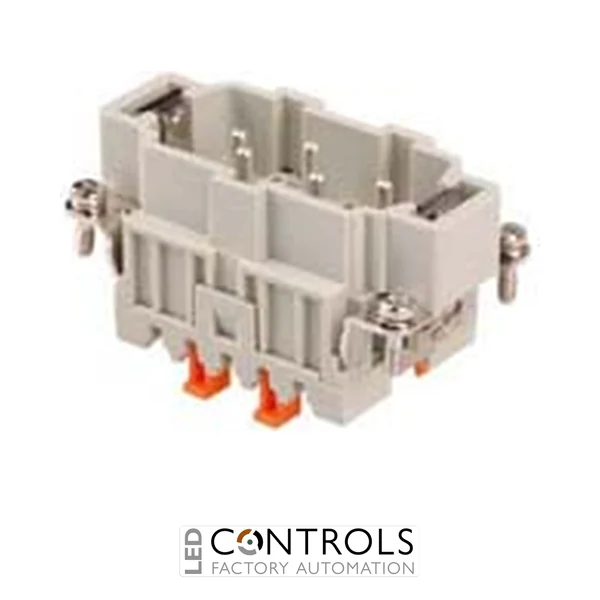

The ILME CMSHM03 is a robust male industrial connector insert from the ILME CMSH series, designed for reliable power and control connections in heavy-duty machinery and automation systems. Featuring SQUICH® spring terminal technology, the insert enables fast conductor termination without conventional screw terminals or specialist termination tools.
Designed with 3 main poles, 2 auxiliary poles and PE, the CMSHM03 combines power and auxiliary control connections within a compact size 57.27 connector format. Its turned silver-plated contacts and durable polycarbonate construction provide dependable electrical performance for industrial equipment, control panels and machine-building applications.
With a rated current of 16 A and a main-contact rated voltage of 830 V, the CMSHM03 is suitable for demanding industrial electrical connections. The auxiliary contacts are rated at 16 A, 500 V, while the SQUICH® terminals accommodate conductors from 0.14–2.50 mm² or AWG 26–14.
Key Advantages
- Compact male industrial connector insert with SQUICH® spring terminals.
- 3 main poles + 2 auxiliary poles + PE combine power and control connections.
- 16 A, 830 V main-contact rating for demanding industrial applications.
- Tool-free SQUICH® termination helps reduce wiring and installation time.
- Accepts conductors from 0.14–2.50 mm² or AWG 26–14.
- Designed for size 57.27 ILME heavy-duty connector enclosures.
Key Features
- ILME CMSH series male connector insert.
- SQUICH® spring terminal connection without tools.
- 3 main poles + 2 auxiliary poles + PE.
- 16 A rated current.
- 830 V rated voltage for main contacts.
- Auxiliary contacts rated at 16 A, 500 V.
- 8 kV rated impulse withstand voltage for the main contacts.
- 6 kV rated impulse withstand voltage for auxiliary contacts.
- Turned silver-plated contacts.
- Compatible with ILME size 57.27 connector enclosures.
Fast and Reliable Industrial Connector Termination
ILME SQUICH® technology uses spring terminals with actuator buttons to provide secure conductor termination without conventional terminal screws. This simplifies wiring during machine building, control-panel assembly and maintenance while providing a dependable electrical connection for industrial equipment.
The CMSH series combines power and auxiliary connections in a compact heavy-duty connector format. When the CMSHM03 is installed in a suitable ILME enclosure, the resulting connector assembly can provide a high degree of environmental protection for machinery, automation equipment and industrial electrical installations.
Typical Applications
- Industrial machinery and machine building.
- Factory automation and production equipment.
- Control panels and electrical cabinets.
- Robotics and automated handling systems.
- Power and auxiliary control connections.
- Packaging and processing machinery.
- Heavy-duty multipole connector assemblies.
