Why Choose the Ilme CNEF10RY High-Temperature Female Insert?

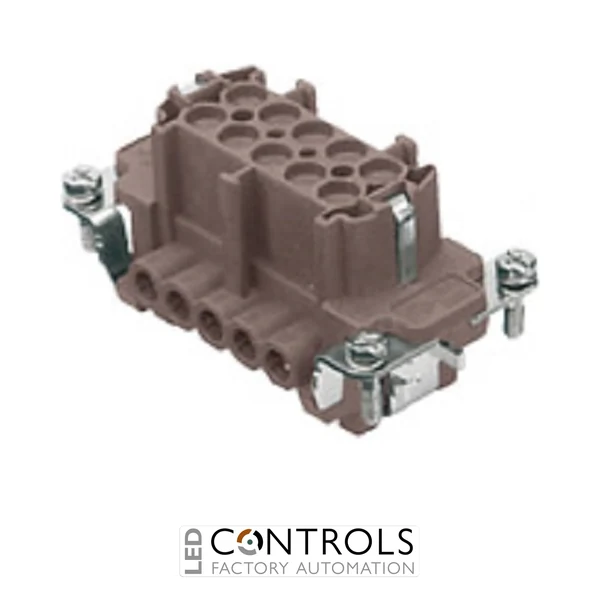

The Ilme CNEF10RY is a high-temperature heavy-duty female connector insert with 10 poles plus protective earth, designed for industrial applications requiring reliable electrical connectivity at temperatures up to 180 °C. Part of the CNE RY series, it is rated at 16 A and 500 V and fits compatible Ilme enclosures in size 57.27.
The CNEF10RY uses screw terminal connections with conductor protection plates, allowing unprepared conductors to be securely terminated without separate crimp contacts. It accepts conductor cross-sections from 0.5–4 mm² (AWG 20–12), making it suitable for a broad range of industrial power and control wiring.
Manufactured from high-temperature polyphenylene sulphide (PPS) and fitted with turned silver-plated female contacts, the CNEF10RY is engineered for an ambient temperature range of -40 to +180 °C. Its heat-resistant construction makes it particularly suitable for machinery and processes where conventional connector inserts may be exposed to excessive operating temperatures.
Key Advantages
- 10 poles plus protective earth for versatile industrial connections.
- 16 A, 500 V electrical rating according to EN 61984.
- Designed for demanding applications at temperatures up to 180 °C.
- Screw terminals with conductor protection plates simplify field wiring.
- Accepts conductors from 0.5–4 mm² / AWG 20–12.
- Silver-plated female contacts provide dependable electrical performance.
Key Features
- Ilme CNE RY series high-temperature connector insert.
- 10 poles + PE contact arrangement.
- Female connection.
- Screw terminal connection.
- Integrated conductor protection plates.
- PPS high-temperature insulating body.
- Size 57.27 enclosure compatibility.
- Brown insert body identifies the high-temperature CNE RY version.
Reliable Connectivity for High-Temperature Industrial Applications
Standard connector materials can be unsuitable where machinery and processes expose electrical connections to sustained elevated temperatures. The CNEF10RY uses a heat-resistant PPS insulating body and is specified for ambient temperatures up to 180 °C, allowing it to provide dependable detachable connectivity in demanding thermal environments.
Its screw terminals and integrated conductor protection plates provide straightforward installation with unprepared conductors, while the ten poles plus protective earth accommodate multiple power or control circuits within one connector. When installed in an appropriate Ilme enclosure, the insert forms part of a robust industrial connection system suitable for machinery installation, servicing and maintenance.
Typical Applications
- High-temperature industrial machinery.
- Ovens, furnaces and heating equipment.
- Plastics and rubber processing machinery.
- Industrial drying and thermal processing systems.
- Production and process automation equipment.
- Heavy-duty power and control connections exposed to elevated temperatures.
