Why Choose the Ilme CNEF06TX Female Screw Insert?

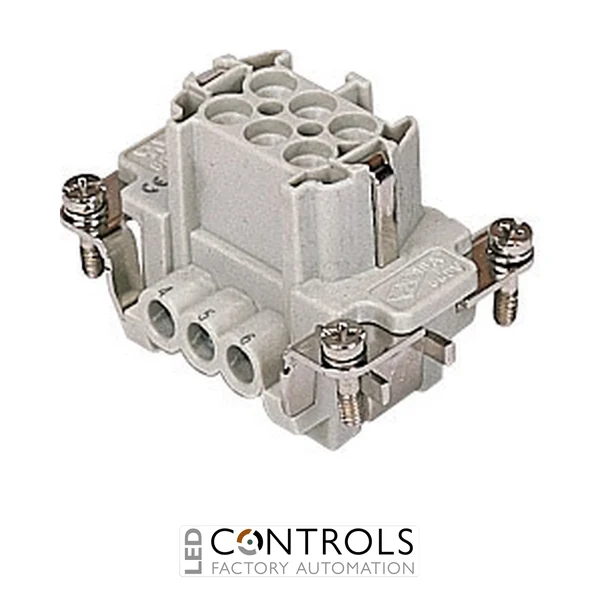

The Ilme CNEF06TX is a heavy-duty female multipole connector insert with 6 poles plus protective earth, designed for reliable detachable electrical connections in industrial machinery, automation systems and control equipment. With a 16 A current rating and screw termination, it provides a practical connection solution for power, control and signal circuits.
The CNEF06TX uses screw terminal connections, allowing conductors to be securely terminated using conventional installation tools without separate crimp contacts. This makes the insert particularly convenient for machine building, panel wiring, maintenance and field installations where straightforward conductor termination is required.
As a female insert, the CNEF06TX is designed to mate with the corresponding compatible male insert. Installed within a suitable Ilme heavy-duty connector enclosure, it forms part of a robust multipole connection system that allows machinery and equipment wiring to be connected and disconnected efficiently.
Key Advantages
- 6 poles plus protective earth for industrial multipole connections.
- 16 A rated current for power, control and signal circuits.
- Screw termination enables straightforward conductor installation.
- No separate crimp contacts are required for conductor termination.
- Female connection for mating with the corresponding compatible male insert.
- Designed for integration into Ilme heavy-duty rectangular connector enclosures.
Key Features
- Ilme CNEF06TX female connector insert.
- 6 poles + PE contact arrangement.
- 16 A rated current.
- Screw terminal connection.
- Female contact configuration.
- Protective-earth connection incorporated into the insert.
- Suitable for detachable industrial electrical connections.
- Designed for compatible Ilme heavy-duty connector housings and hoods.
Practical Screw-Terminal Connectivity for Industrial Equipment
Screw-terminal connector inserts provide a familiar and serviceable method of conductor termination. Conductors are secured directly at the insert terminals, making installation practical where conventional wiring tools are preferred and eliminating the need to select and install separate crimp contacts.
With six electrical poles plus protective earth, the CNEF06TX is suitable for a broad range of industrial power and control circuits. When paired with the corresponding male insert and installed in compatible Ilme enclosure components, it provides a robust detachable interface that can simplify machinery installation, commissioning and maintenance.
Typical Applications
- Industrial machinery and factory automation.
- Machine tools and production equipment.
- Packaging and processing machinery.
- Material handling and conveyor systems.
- Electrical control panels and machine wiring.
- Heavy-duty power, control and signal connector assemblies.
