Why Choose the ILME CNEF10TX Female Insert?

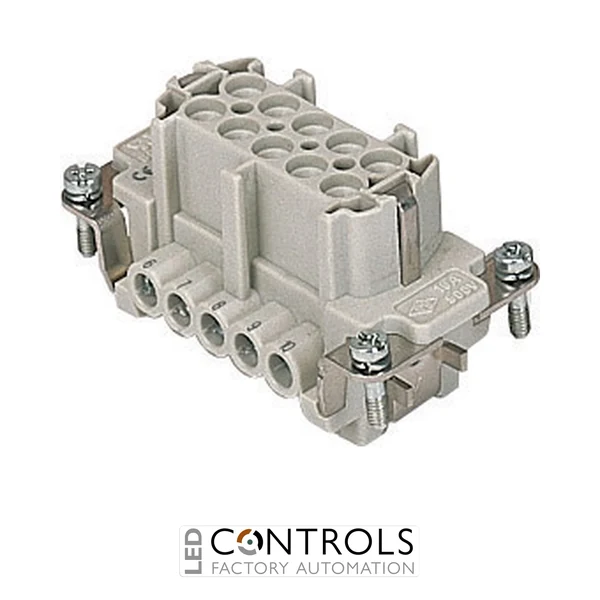

The ILME CNEF10TX is a high-quality 10-pole plus earth female connector insert designed for heavy-duty industrial multipole connections. Part of the ILME CNE series, it combines a 16 A current rating with screw terminal connections and a compact size 57.27 format for dependable power and control wiring in machinery, automation and electrical equipment.
Designed for prepared conductors, the CNEF10TX is the direct-connection version supplied without a terminal plate. Its screw terminals accept conductor cross-sections from 0.25–2.5 mm², while turned silver-plated contacts provide low-resistance electrical connections and reliable performance through repeated mating cycles.
The insert is rated at 16 A and 500 V according to EN 61984, with a 6 kV rated impulse withstand voltage and pollution degree 3. When installed in a suitable ILME enclosure, the complete connector assembly can achieve high levels of ingress protection for demanding industrial environments.
Key Advantages
- 10 poles plus protective earth for multipole industrial connections.
- 16 A, 500 V rating according to EN 61984.
- Reliable screw terminal connection for prepared conductors.
- Accepts conductors from 0.25–2.5 mm² / AWG 24–14.
- Turned silver-plated contacts provide dependable electrical performance.
- Designed for at least 500 mating cycles for reliable repeated connection and disconnection.
Key Features
- ILME CNE series female connector insert.
- 10 poles + PE contact configuration.
- 16 A rated current.
- 500 V rated voltage.
- 6 kV rated impulse withstand voltage.
- Direct screw terminal connection without plate.
- Size 57.27 for compatible ILME enclosures.
- Polycarbonate insulating body with turned silver-plated copper-alloy contacts.
- Operating temperature range from -40 °C to +125 °C.
Reliable Multipole Connections for Industrial Equipment
Heavy-duty connector inserts provide a removable electrical interface between machinery, control cabinets and field equipment. The ILME CNEF10TX combines ten female power or control contacts with a dedicated protective-earth connection, allowing multiple conductors to be connected through one compact industrial connector assembly.
Its screw terminal design provides a secure mechanical connection for prepared conductors, while silver-plated contacts help minimise contact resistance. When fitted into a compatible ILME size 57.27 hood or housing, the insert forms part of a robust connector system suitable for industrial environments requiring frequent installation, maintenance or equipment replacement.
Typical Applications
- Industrial machinery and production equipment.
- Factory automation and control systems.
- Electrical control panels and cabinets.
- Motor and machine power connections.
- Conveyor and material handling equipment.
- Heavy-duty multipole wiring interfaces.
