Why Choose the ILME CNEF16RY Female Insert?

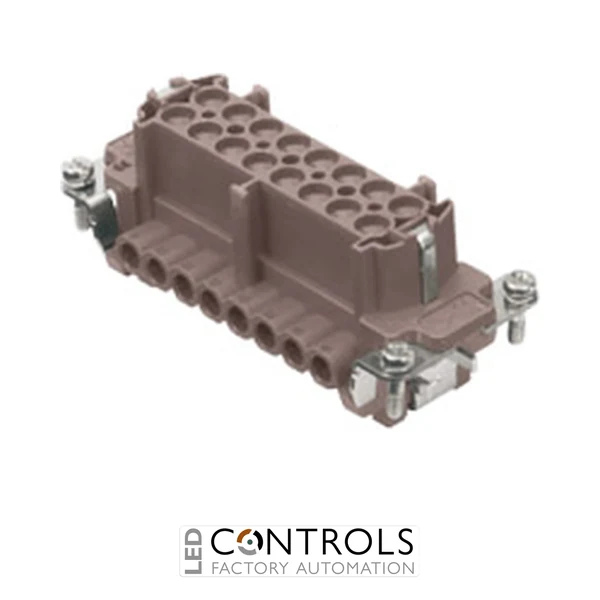

The ILME CNEF16RY is a high-temperature 16-pole plus earth female connector insert designed for heavy-duty multipole electrical connections in demanding industrial environments. Part of the ILME CNE RY series, it combines a 16 A, 500 V rating with screw terminal connections and a size 77.27 format for reliable power and control wiring.
The CNEF16RY is specifically designed for applications with ambient temperatures up to +180 °C. Its insulating body is manufactured from high-temperature polyphenylene sulphide (PPS), while turned silver-plated copper-alloy contacts provide dependable electrical performance and low contact resistance. The insert is supplied with a terminal plate and accommodates conductors from 0.5–4 mm².
Rated according to EN 61984 at 16 A and 500 V, with a 6 kV rated impulse withstand voltage and pollution degree 3, the CNEF16RY is engineered for robust industrial connector systems. Its extended -40 °C to +180 °C operating temperature range makes it particularly suitable for machinery and equipment where standard thermoplastic inserts may not provide sufficient temperature capability.
Key Advantages
- 16 poles plus protective earth for high-density industrial connections.
- 16 A, 500 V rating according to EN 61984.
- High-temperature construction suitable for applications up to +180 °C.
- Reliable screw terminal connection for industrial wiring.
- Accepts conductors from 0.5–4 mm² / AWG 20–12.
- Turned silver-plated contacts provide low-resistance, dependable electrical connections.
Key Features
- ILME CNE RY series high-temperature female connector insert.
- 16 poles + PE contact configuration.
- 16 A rated current.
- 500 V rated voltage.
- 6 kV rated impulse withstand voltage.
- Screw terminal connection with terminal plate.
- Size 77.27 for compatible ILME enclosures.
- High-temperature PPS insulating body.
- Operating temperature range from -40 °C to +180 °C.
Reliable High-Temperature Connections for Industrial Equipment
Heavy-duty connector inserts provide a removable electrical interface between machinery, control equipment and field wiring. The ILME CNEF16RY combines sixteen female contacts with a dedicated protective-earth connection, enabling multiple power or control circuits to be carried through one compact size 77.27 connector assembly.
Unlike standard CNE inserts, the CNE RY version is designed for elevated-temperature applications up to +180 °C. Its heat-resistant PPS insulating body, screw terminals and silver-plated contacts make it well suited to industrial installations where secure wiring, repeated mating and reliable electrical performance must be maintained under demanding thermal conditions.
Typical Applications
- High-temperature industrial machinery and equipment.
- Factory automation and production systems.
- Industrial ovens and heat-processing machinery.
- Electrical control and power distribution equipment.
- Machine power and control connections.
- Heavy-duty multipole connector installations.
