Why Choose the Ilme CNEM06RY High-Temperature Male Insert?

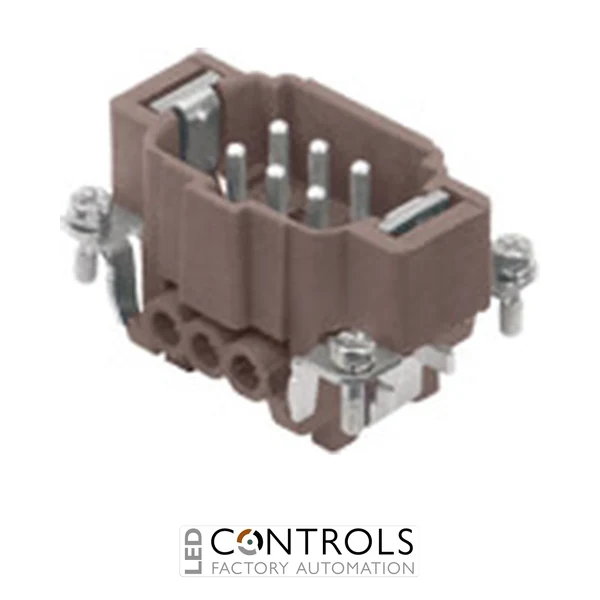

The Ilme CNEM06RY is a high-temperature heavy-duty male connector insert with 6 poles plus protective earth, designed for demanding industrial electrical connections. Part of the CNE RY series, it is rated at 16 A and 500 V, uses screw terminal connections and fits compatible Ilme high-temperature enclosures in size 44.27.
The CNEM06RY uses screw terminals with conductor protection plates, allowing unprepared conductors to be securely terminated without separate crimp contacts. It accepts conductor cross-sections from 0.5–4 mm² or AWG 20–12, providing a practical connection method for industrial power and control wiring.
Manufactured with a heat-resistant polyphenylene sulphide (PPS) insulating body and turned silver-plated male contacts, the CNEM06RY is specified for operating temperatures from -40 to +180 °C. This makes it particularly suitable for machinery and processes where conventional connector inserts may be exposed to elevated temperatures.
Key Advantages
- 6 poles plus protective earth for industrial power and control connections.
- 16 A, 500 V electrical rating according to EN 61984.
- Designed for high-temperature applications up to 180 °C.
- Screw terminals with conductor protection plates support straightforward field wiring.
- Accepts conductors from 0.5–4 mm² / AWG 20–12.
- Turned silver-plated male contacts provide dependable electrical performance.
Key Features
- Ilme CNE RY series high-temperature connector insert.
- 6 poles + PE contact arrangement.
- Male connection.
- Screw terminal connection.
- Integrated conductor protection plates.
- PPS high-temperature insulating body.
- Size 44.27 enclosure compatibility.
- Designed for applications with ambient temperatures up to 180 °C.
Reliable Connectivity for High-Temperature Industrial Applications
Industrial equipment operating near ovens, heaters and thermal processes can expose electrical connectors to temperatures beyond the capabilities of conventional inserts. The CNEM06RY uses a heat-resistant PPS insulating body and is specified for ambient temperatures up to 180 °C, providing a purpose-designed solution for these demanding installations.
Its screw terminals and conductor protection plates enable straightforward termination of unprepared conductors, while the six poles plus protective earth provide a versatile interface for power and control circuits. When paired with the corresponding female insert and a suitable Ilme enclosure, the CNEM06RY forms part of a robust detachable industrial connection system.
Typical Applications
- High-temperature industrial machinery.
- Industrial ovens, furnaces and heating equipment.
- Plastics and rubber processing machinery.
- Industrial drying and thermal processing systems.
- Production and process automation equipment.
- Heavy-duty power and control connections exposed to elevated temperatures.
