Why Choose the ILME CNEM 06 TX Male Insert?

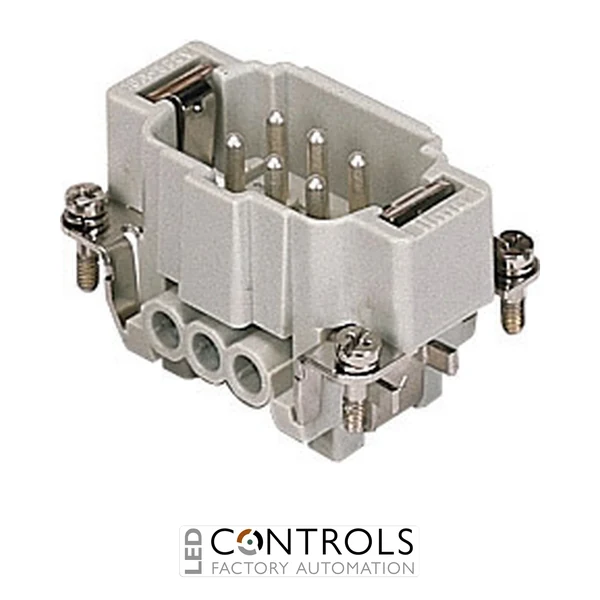

The ILME CNEM 06 TX is a robust male industrial connector insert from the ILME CNE series, designed for reliable multipole electrical connections in machinery, automation equipment and industrial control systems. Featuring 6 poles plus protective earth (6P+E) and proven screw-terminal technology, it provides dependable power and control connectivity in heavy-duty rectangular connector assemblies.
The CNEM 06 TX is the version designed without a terminal protection plate, for prepared conductors. This configuration provides straightforward screw-terminal wiring where conductors have been appropriately prepared before termination, making it well suited to production machinery, control-panel construction and industrial electrical installations.
With a rated current of 16 A and rated voltage of 500 V, the CNEM 06 TX provides reliable electrical performance for demanding industrial applications. The insert is manufactured in size 44.27 and uses turned silver-plated contacts for durable, low-resistance electrical connections.
Key Advantages
- Heavy-duty male industrial connector insert with screw terminals.
- 6 poles plus protective earth (6P+E) for multipole electrical connections.
- 16 A, 500 V rating suitable for industrial power and control applications.
- Without terminal protection plate, specifically designed for prepared conductors.
- Turned silver-plated contacts provide dependable electrical connectivity.
- Designed for size 44.27 ILME heavy-duty connector enclosures.
Key Features
- ILME CNE series male connector insert.
- 6 poles + PE.
- 16 A rated current.
- 500 V rated voltage.
- 6 kV rated impulse withstand voltage.
- Reliable screw-terminal connection.
- Without plate for prepared conductors.
- Turned silver-plated contacts.
- Durable polycarbonate insulating body.
- Designed for ILME size 44.27 connector enclosures.
Reliable Screw-Terminal Connectivity for Prepared Conductors
The ILME CNEM 06 TX uses established screw-terminal technology to provide secure and serviceable electrical connections. Unlike the CNEM 06 T version with a terminal protection plate, the CNEM 06 TX is supplied without the plate and is intended for prepared conductors, providing a dedicated solution for installations where conductor preparation forms part of the assembly process.
When installed in a compatible ILME size 44.27 hood or housing and paired with the corresponding female insert, the CNEM 06 TX forms part of a durable detachable connector system. This allows machinery and electrical equipment to be connected and disconnected efficiently during manufacture, installation, servicing and equipment replacement.
Typical Applications
- Industrial machinery and machine building.
- Factory automation and production equipment.
- Control panels and electrical cabinets.
- Conveyors and material handling systems.
- Packaging and processing machinery.
- Industrial power and control wiring.
- Heavy-duty multipole connector assemblies.
