Why Choose the ILME CNEM10TX Male Insert?

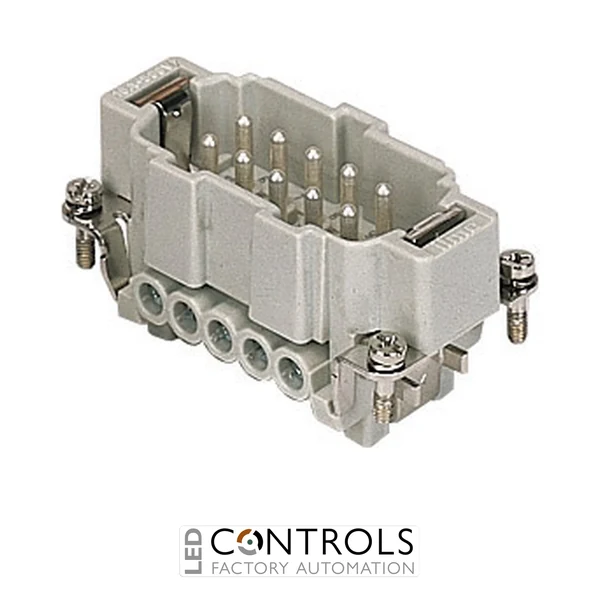

The ILME CNEM10TX is a robust 10-pole plus earth male connector insert designed for reliable heavy-duty multipole electrical connections in industrial machinery, automation and control systems. Part of the ILME CNE series, it combines a 16 A, 500 V rating with screw terminal connections and the standard ILME size 57.27 format.
The CNEM10TX is the direct screw-connection version supplied without a terminal plate and is intended for prepared conductors. Its terminals accommodate conductor cross-sections from 0.25–2.5 mm², while turned silver-plated contacts provide low-resistance electrical connections and dependable performance in industrial equipment.
Rated according to EN 61984 at 16 A and 500 V, with a 6 kV rated impulse withstand voltage and pollution degree 3, the CNEM10TX provides a durable interface for power and control circuits. When installed in a compatible ILME size 57.27 enclosure, it forms part of a protected heavy-duty connector system suitable for demanding industrial environments.
Key Advantages
- 10 poles plus protective earth for multipole industrial connections.
- 16 A, 500 V rating according to EN 61984.
- Direct screw terminal connection for prepared conductors.
- Accepts conductor cross-sections from 0.25–2.5 mm² / AWG 24–14.
- Turned silver-plated contacts provide dependable, low-resistance electrical performance.
- Designed for at least 500 mating cycles for durable repeated connection and disconnection.
Key Features
- ILME CNE series male connector insert.
- 10 poles + PE contact configuration.
- 16 A rated current.
- 500 V rated voltage.
- 6 kV rated impulse withstand voltage.
- Screw terminal connection without terminal plate.
- Size 57.27 for compatible ILME enclosures.
- Polycarbonate insulating body with turned silver-plated contacts.
- Operating temperature range from -40 °C to +125 °C.
Reliable Multipole Connections for Industrial Equipment
Heavy-duty connector inserts provide a removable electrical interface between machinery, control cabinets and field equipment. The ILME CNEM10TX combines ten male contacts with a dedicated protective-earth connection, allowing multiple power or control conductors to be carried through one compact industrial connector assembly.
The direct screw-terminal design provides secure termination for prepared conductors, while the silver-plated contacts help maintain low contact resistance through repeated mating cycles. When fitted into a compatible ILME size 57.27 hood or housing and paired with the corresponding female insert, the CNEM10TX provides a robust connection system for machinery requiring reliable installation, servicing and disconnection.
Typical Applications
- Industrial machinery and production equipment.
- Factory automation and control systems.
- Electrical control panels and cabinets.
- Motor and machine power connections.
- Conveyor and material handling equipment.
- Heavy-duty multipole wiring interfaces.
