Why Choose the ILME CNEM16RY Male Connector Insert?

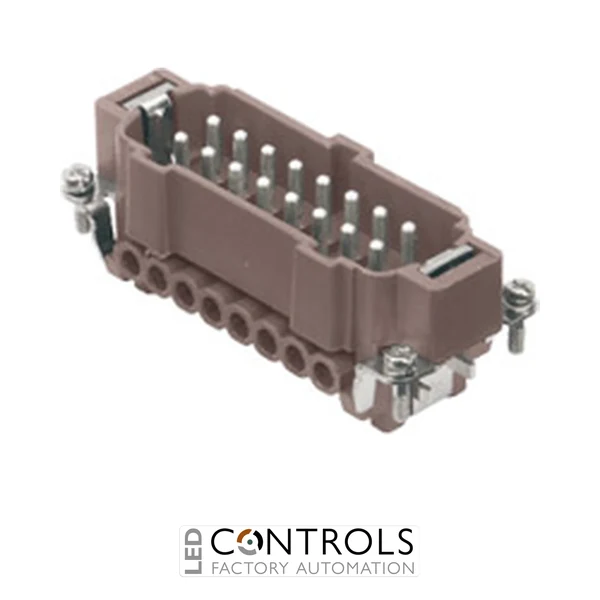

The ILME CNEM16RY is a high-temperature male heavy-duty multipole connector insert designed for reliable electrical connections in demanding industrial machinery, automation and control applications. Part of the ILME CNE RY series, it provides 16 poles plus protective earth and combines a 16 A current rating with robust screw-terminal termination.
The CNEM16RY uses screw terminal connections for secure conductor termination and accepts conductors from 0.5–4 mm² (AWG 20–12). Its turned, silver-plated male contacts provide dependable electrical performance, while the high-temperature polyphenylene sulphide insulating material allows the insert to operate at temperatures up to 180 °C.
Rated at 16 A and 500 V, with a 6 kV rated impulse withstand voltage, the CNEM16RY is supplied with a mounting plate and uses the 77.27 size format. This combination makes it particularly suitable for industrial connector applications where elevated operating temperatures and dependable multipole connectivity are required.
Key Advantages
- 16 poles plus protective earth for high-density industrial electrical connections.
- 16 A, 500 V rating for industrial power and control circuits.
- High-temperature design suitable for applications up to 180 °C.
- Screw terminal connection provides secure and straightforward conductor termination.
- Accepts conductor cross-sections from 0.5–4 mm².
- Turned silver-plated contacts provide reliable electrical conductivity.
Key Features
- ILME CNE RY series male connector insert.
- 16 poles plus protective earth.
- 16 A rated current.
- 500 V rated voltage.
- 6 kV rated impulse withstand voltage.
- Pollution degree 3.
- Screw terminal connection.
- 0.5–4 mm² conductor cross-section.
- AWG 20–12 conductor compatibility.
- Turned silver-plated male contacts.
- 77.27 insert size.
- Supplied with mounting plate.
- Designed for operation from -40 to +180 °C.
Reliable High-Temperature Connectivity for Industrial Equipment
Heavy-duty multipole connectors provide an organised way to connect and disconnect multiple electrical circuits through a single industrial interface. The ILME CNEM16RY combines sixteen male contacts with protective earth, helping simplify wiring between machinery modules, electrical panels and industrial equipment while providing dependable mechanical and electrical performance.
The CNE RY series is specifically designed for elevated-temperature environments, with the CNEM16RY capable of operating at temperatures up to 180 °C. When paired with the corresponding compatible female insert and installed in a suitable ILME enclosure, it provides a durable detachable connection solution for demanding industrial installations.
Typical Applications
- Industrial machinery operating at elevated temperatures.
- Production and process equipment.
- Factory automation systems.
- Electrical control panels and machinery interfaces.
- Machine building and OEM equipment.
- Industrial power and control wiring requiring high-temperature connector components.
