Why Choose the ILME CNEM24TXN Male Insert?

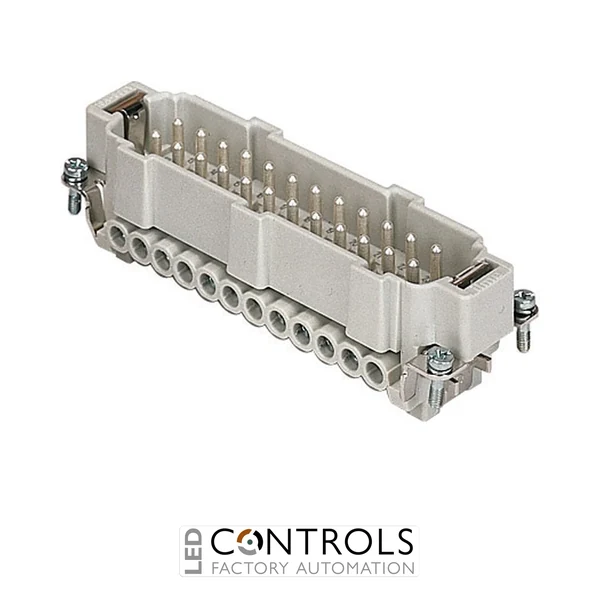

The ILME CNEM24TXN is a robust 24-pole plus earth male connector insert designed as the second numbered insert for high-density heavy-duty industrial connector assemblies. Part of the ILME CNE series, it combines a 16 A, 500 V electrical rating with screw terminal connections and the extended size 104.62 format.
The CNEM24TXN is supplied without a terminal plate and is intended for prepared conductors. Its contacts are numbered 25–48, allowing it to complement the corresponding 1–24 insert in a 48-pole plus protective-earth size 104.62 connector assembly. The screw terminals accept conductor cross-sections from 0.25–2.5 mm², corresponding to AWG 24–14.
Rated according to EN 61984 at 16 A and 500 V, with a 6 kV rated impulse withstand voltage and pollution degree 3, the CNEM24TXN provides dependable connectivity for industrial power and control circuits. Turned silver-plated contacts, a self-extinguishing thermoplastic insulating body and a mechanical life of at least 500 mating cycles support reliable service in demanding machinery and automation applications.
Key Advantages
- 24 poles plus protective earth with pole numbering 25–48 for high-density connector assemblies.
- 16 A, 500 V rating according to EN 61984.
- Direct screw terminal connection for prepared conductors.
- Accepts conductor cross-sections from 0.25–2.5 mm² / AWG 24–14.
- Turned silver-plated contacts provide dependable low-resistance electrical connections.
- Designed for at least 500 mating cycles for durable repeated connection and disconnection.
Key Features
- ILME CNE series male connector insert.
- 24 poles + PE with contact numbering 25–48.
- 16 A rated current.
- 500 V rated voltage.
- 6 kV rated impulse withstand voltage.
- Screw terminal connection without terminal plate.
- Size 104.62 for compatible double-size ILME enclosures.
- Turned silver-plated contacts for reliable electrical performance.
- Operating temperature range from -40 °C to +125 °C.
Reliable High-Density Connections for Industrial Equipment
Heavy-duty connector inserts provide a removable electrical interface between machinery, control cabinets and field equipment. The ILME CNEM24TXN provides 24 male contacts numbered 25–48 plus protective earth, allowing it to form part of a high-density connector arrangement capable of carrying numerous power or control circuits through a single size 104.62 enclosure.
The direct screw-terminal system provides secure termination for prepared conductors, while silver-plated contacts help maintain low contact resistance through repeated mating cycles. When installed with the complementary insert and a compatible ILME size 104.62 hood or housing, the CNEM24TXN provides a robust connection solution for machinery requiring efficient installation, maintenance and equipment replacement.
Typical Applications
- Industrial machinery and production equipment.
- Factory automation and control systems.
- High-density electrical control connections.
- Machine power and signal interfaces.
- Conveyor and material handling equipment.
- 48-pole heavy-duty multipole connector assemblies.
