Why Choose the ILME COB 10 BC Connector Carrier Baseplate?

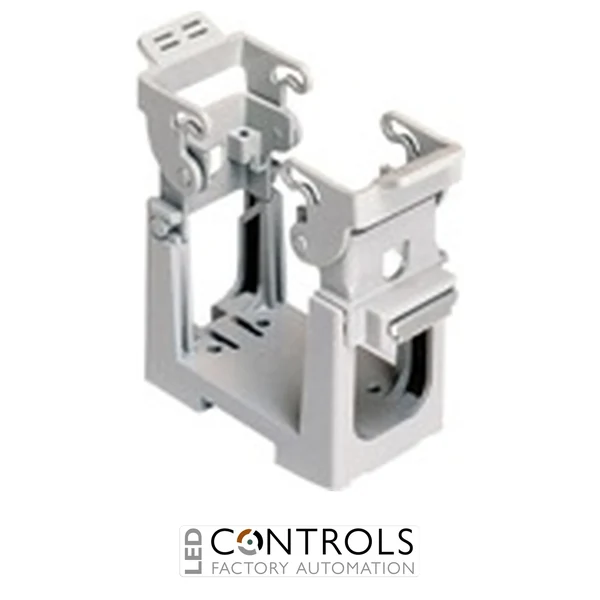

The ILME COB 10 BC is a robust connector carrier baseplate designed for mounting ILME multipole connector inserts inside control panels, electrical cabinets and industrial machinery. Part of the ILME COB panel supports series, it provides a practical open mounting solution for inserts with a 57 × 27 mm screw fixing centre distance, corresponding to ILME size 57.27.
The COB 10 BC can be installed directly onto a DIN EN 60715 mounting rail or fixed in position using screws, giving panel builders flexibility when arranging industrial connector assemblies. This makes it particularly useful where multipole inserts need to be securely mounted within an enclosure without using a conventional external heavy-duty connector housing.
Designed for industrial environments, the COB 10 BC has an IP20 protection rating without an enclosure and an operating temperature range of -40 °C to +125 °C. Its size 57.27 format supports compatible ILME connector inserts with a 57 × 27 mm fixing pattern, providing a versatile mounting platform for power, signal and control connections.
Key Advantages
- Purpose-designed connector carrier baseplate for industrial control panels.
- Compatible with inserts featuring a 57 × 27 mm screw fixing centre distance.
- Suitable for mounting on DIN EN 60715 rail or directly with screws.
- Provides a convenient open mounting system for compatible ILME multipole inserts.
- Wide -40 °C to +125 °C operating temperature range.
- Part of the versatile ILME COB panel supports series.
Key Features
- ILME COB panel supports series.
- Size 57.27 connector carrier format.
- Designed for inserts with 57 × 27 mm screw fixing centres.
- DIN EN 60715 rail mounting capability.
- Alternative screw-fixed mounting capability.
- IP20 protection rating without enclosure.
- RAL 7032 grey finish.
- Operating temperature range from -40 °C to +125 °C.
- Suitable for industrial control cabinets and machinery.
- Compatible with multiple ILME insert families in the appropriate 57.27 format.
Flexible Connector Mounting for Control Panels
The ILME COB panel support system provides an alternative way to install multipole connector inserts within electrical panels and machinery. By securing compatible inserts to the COB 10 BC carrier, designers can organise detachable power, signal and control connections while retaining convenient access for wiring and maintenance.
The ability to mount the COB 10 BC on a standard DIN EN 60715 rail or secure it using screws makes it particularly adaptable to control-cabinet layouts. Its 57 × 27 mm fixing pattern supports compatible size 57.27 ILME inserts, making the carrier suitable for a wide range of industrial connector configurations.
Typical Applications
- Industrial control panels and electrical cabinets.
- Machine building and production equipment.
- Factory automation systems.
- DIN rail mounted connector assemblies.
- Power, signal and control distribution.
- Packaging and processing machinery.
- Industrial equipment requiring accessible multipole connector mounting.
