Why Choose the Ilme CPM06N Male Insert?

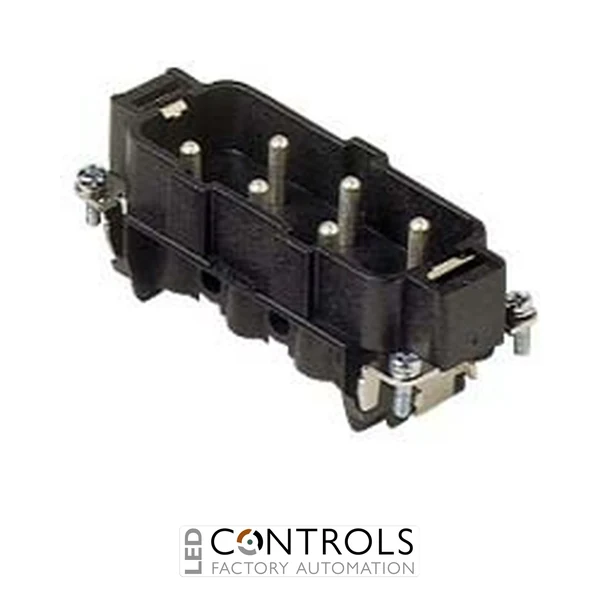

The Ilme CPM06N is a robust 6-pole plus earth male multipole connector insert designed for high-current electrical connections in industrial machinery, automation equipment and control systems. Part of the established Ilme CP series, this black insert combines a 35 A current rating with secure screw-terminal wiring for dependable heavy-duty connector assemblies.
The CPM06N uses screw terminal connections to provide secure and serviceable conductor termination in industrial installations. Its male contact arrangement is designed to mate with the corresponding Ilme female insert, while its black insulating body provides clear visual differentiation within connector systems.
With 6 poles plus protective earth, a rated current of 35 A and a rated voltage of 400/690 V, the CPM06N is suitable for higher-current power and control circuits. Its size 77.27 format enables installation in compatible Ilme heavy-duty connector hoods and housings for machinery and industrial equipment.
Key Advantages
- Heavy-duty 6-pole plus earth male connector insert.
- 35 A rated current for higher-current industrial connections.
- 400/690 V rated voltage for industrial electrical systems.
- Secure screw terminal connection for straightforward field wiring.
- Black insulating body provides easy visual identification.
- Designed for compatible Ilme size 77.27 connector enclosures.
Key Features
- Ilme CP series male multipole insert.
- 6 poles plus protective earth (6P+PE).
- Male contact configuration.
- 35 A rated current.
- 400/690 V rated voltage.
- 6 kV rated impulse withstand voltage.
- Screw terminal connection for secure conductor termination.
- Black thermoplastic insulating body.
- Designed for size 77.27 heavy-duty connector assemblies.
- Suitable for demanding industrial power and control applications.
High-Current Connectivity for Industrial Machinery
Heavy-duty multipole connectors allow several electrical circuits and protective earth to be combined within one detachable connection point. The Ilme CPM06N provides six high-current male contacts plus earth, helping simplify machine installation, commissioning and maintenance while maintaining reliable electrical continuity.
The CP series is suited to industrial applications where higher current capacity and robust field wiring are required. When paired with a compatible female insert and suitable Ilme hood or housing, the CPM06N forms part of a durable connector assembly for power distribution, machinery and automation systems.
Typical Applications
- Industrial machinery and machine-building systems.
- Factory automation and production equipment.
- Motor and drive power connections.
- Electrical control panels and cabinet assemblies.
- Conveyor and material handling equipment.
- High-current industrial power interconnections.
