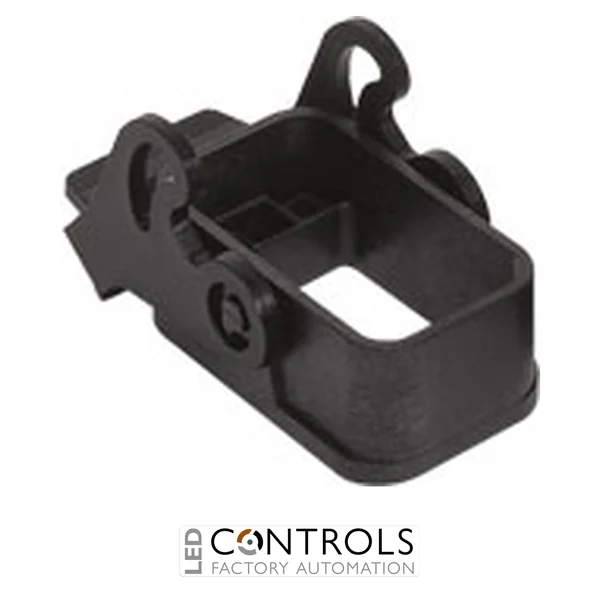

Why Choose the ILME CQ08I Bulkhead Mounting Housing?
The ILME CQ08I is a compact bulkhead mounting housing designed for ILME CQ series industrial connector assemblies. Featuring a single locking lever and the compact size 32.13 format, it provides a secure panel-mounted interface for compatible multipole connector inserts used in machinery, automation and industrial electrical systems.
Manufactured as part of ILME's insulating CQ enclosure range, the CQ08I features a durable RAL 9005 black construction and is supplied without a cable entry, as wiring passes through the panel or enclosure behind the bulkhead-mounted connector. The integrated lever provides secure mechanical locking with a compatible hood or cover equipped with the corresponding locking pegs.
When correctly assembled and locked with compatible ILME components, the CQ08I provides IP66, IP67 and IP69 protection. A wide operating temperature range of -40 °C to +125 °C, compact 14 g construction and recognised industrial approvals make it suitable for demanding control-panel and machine-interface applications.
Key Advantages
- Compact bulkhead mounting housing for industrial connector systems.
- Single locking lever provides secure and convenient connector coupling.
- Size 32.13 format for compatible ILME CQ series inserts.
- IP66 / IP67 / IP69 protection when correctly assembled and locked.
- Durable insulating construction with RAL 9005 black finish.
- No cable entry required on the housing for direct panel-mounted installations.
- Wide -40 °C to +125 °C operating temperature range.
- Compact and lightweight at approximately 14 g.
Key Features
- ILME CQ series bulkhead mounting housing.
- Size 32.13.
- 1 locking lever.
- Without cable entry.
- IP66 / IP67 / IP69 degree of protection.
- RAL 9005 black finish.
- Insulating enclosure construction.
- Suitable for compatible CQ series multipole connector inserts.
- Designed for panel, cabinet and machinery mounting.
- Mechanical life of at least 500 mating cycles for the complete compatible connector system.
Compact Bulkhead Mounting for Industrial Connections
The ILME CQ08I allows compatible CQ series connector inserts to be mounted directly to a control panel, machine enclosure or equipment bulkhead. This creates a fixed connector interface that can be quickly coupled and disconnected from a compatible mobile hood, helping simplify machine installation, commissioning, servicing and replacement.
The integrated single-lever locking system engages with the corresponding pegs on a compatible mating enclosure and provides secure mechanical retention. When the complete connector is correctly assembled and locked, the CQ system offers high ingress protection while retaining the compact dimensions required for space-constrained machinery and control-panel applications.
Typical Applications
- Industrial electrical control panels.
- Factory automation and control systems.
- Machine enclosure connector interfaces.
- Industrial machinery and production equipment.
- Conveyor and material handling systems.
- Robotics and automated manufacturing equipment.
- Motor, actuator and sensor connection systems.
- Compact power, control and signal connections.
