Why Choose the ILME CQ08IAP Angled Housing?

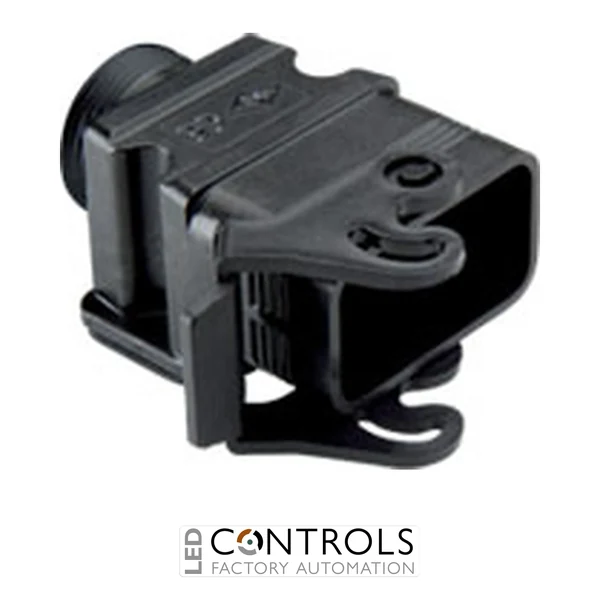

The ILME CQ08IAP is a compact angled bulkhead mounting housing designed for reliable heavy-duty multipole connector installations in industrial machinery, automation systems and control equipment. Part of the ILME CQ series, it uses the compact 32.13 size format and combines an angled mounting arrangement with a dedicated cable entry.
The CQ08IAP features 1 locking lever and a PG21 cable entry, providing secure connector retention and convenient cable routing in installations where space or cable orientation makes a conventional straight housing less suitable. Its plastic construction keeps the housing compact and lightweight while providing the durability required for industrial electrical installations.
When correctly assembled with compatible ILME components, the CQ08IAP provides IP66, IP67 and IP69 protection. With an operating temperature range from -40 to +125 °C, an NBR gasket and robust polyamide locking lever, it provides a dependable enclosure solution for connector installations exposed to demanding environmental conditions.
Key Advantages
- Angled bulkhead mounting design provides practical cable routing in space-constrained installations.
- Compact 32.13 connector size for compatible ILME CQ inserts.
- PG21 cable entry for direct cable connection to the housing.
- Single locking lever provides quick and secure mating with compatible connector components.
- IP66 / IP67 / IP69 protection when correctly assembled with compatible components.
- Wide -40 to +125 °C operating temperature range for demanding industrial environments.
Key Features
- ILME CQ08IAP angled bulkhead mounting housing.
- Part of the ILME CQ series.
- 32.13 size.
- Plastic housing construction.
- 1 locking lever.
- PG21 cable entry.
- IP66 / IP67 / IP69 degree of protection when correctly assembled.
- Polyamide (PA) locking lever.
- NBR gasket.
- RAL 9005 black colour.
- Operating temperature from -40 to +125 °C.
- RoHS compliant construction.
Compact Angled Protection for Industrial Connectors
Angled connector housings are particularly useful where cable routing, enclosure depth or surrounding machinery prevents a convenient straight cable approach. The ILME CQ08IAP combines bulkhead mounting with a PG21 cable entry in a compact 32.13 format, allowing compatible CQ connector inserts to be integrated into machinery and electrical equipment while maintaining practical cable management.
The single-lever locking system provides convenient mating and disconnection during installation or maintenance. When the housing is assembled with suitable ILME connector components and appropriate cable-entry accessories, its IP66, IP67 and IP69 protection makes it suitable for industrial environments where resistance to dust, water ingress and demanding cleaning conditions is important.
Typical Applications
- Industrial machinery and production equipment.
- Factory automation systems.
- Electrical control panels and cabinets.
- Machine building and OEM equipment.
- Compact industrial connector installations.
- Applications requiring angled cable routing and environmental protection.
