Why Choose the ILME CQ08V Plastic Hood?

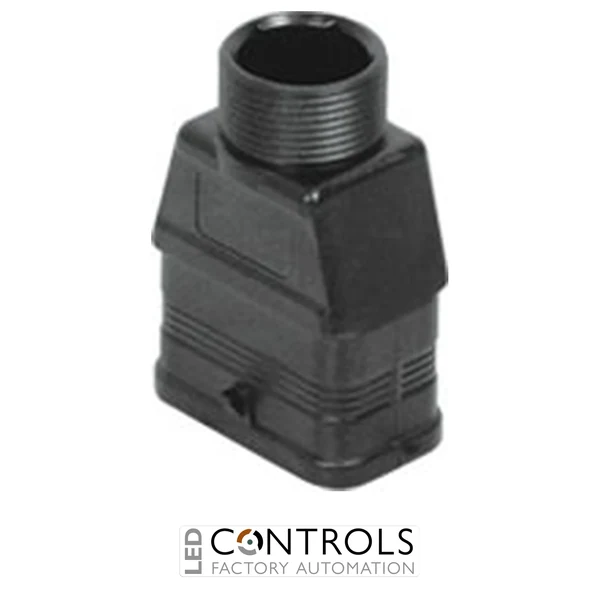

The ILME CQ08V is a compact plastic heavy-duty connector hood designed for industrial multipole connections where space-efficient construction and dependable environmental protection are required. Part of the ILME CQ enclosure range, it uses the compact 32.13 size format and is suitable for compatible CQ series connector inserts.
The CQ08V features a PG21 top cable entry and 2 locking pegs, allowing it to engage securely with a compatible lever-operated ILME housing. The straight top-entry arrangement provides convenient cable routing from the rear of the connector while retaining the compact dimensions required for machinery, automation and panel applications.
When correctly assembled and mated with compatible ILME components, the CQ08V provides IP66, IP67 and IP69 protection. Its insulating plastic construction offers a lightweight alternative to traditional metal heavy-duty connector enclosures while maintaining the mechanical protection and secure mating required for industrial electrical connections.
Key Advantages
- Compact 32.13 size for space-conscious industrial connector installations.
- PG21 top cable entry provides convenient straight cable routing.
- 2 locking pegs for secure engagement with a compatible lever-operated housing.
- Durable insulating plastic construction combines low weight with industrial suitability.
- IP66 / IP67 / IP69 protection when correctly assembled and mated.
- Designed specifically for compatible ILME CQ series inserts and enclosures.
Key Features
- ILME CQ08V heavy-duty connector hood.
- Part of the ILME CQ enclosure range.
- Plastic insulating construction.
- 32.13 connector size.
- 2 locking pegs.
- Top cable entry.
- PG21 cable entry thread.
- External male PG cable-entry thread.
- IP66 / IP67 / IP69 degree of protection when correctly assembled and mated.
- Designed for compatible CQ series multipole connector inserts.
- Suitable for machinery, automation and industrial control installations.
Compact Protection for Industrial Multipole Connections
The ILME CQ enclosure system is designed to provide compact heavy-duty connectivity for machinery and industrial automation equipment. The CQ08V combines a 32.13 connector format with a straight PG21 top cable entry, making it particularly useful where cables need to approach the connector directly while installation space remains limited.
Its two locking pegs engage with the lever mechanism of a compatible mating housing to retain the connector securely. When fitted with the appropriate CQ insert, mating enclosure and correctly selected cable-entry components, the CQ08V forms part of a protected detachable connector assembly suitable for installation, commissioning and routine machinery maintenance.
Typical Applications
- Industrial machinery and production equipment.
- Factory automation and robotics systems.
- Electrical control panels and cabinets.
- Machine building and OEM equipment.
- Compact power and control connections.
- Industrial installations requiring a top-entry detachable connector.
