Why Choose the ILME CQ4M03 Male Insert?

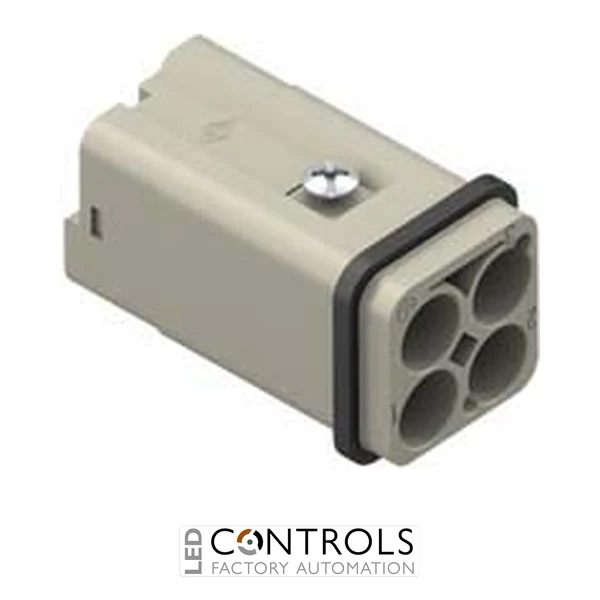

The ILME CQ4M03 is a compact 3-pole plus protective earth male connector insert designed for high-current heavy-duty industrial connections. Part of the ILME CQ series, it combines a 40 A, 400 V rating with crimp termination in the space-saving size 21.21 format.
The CQ4M03 is supplied without crimp contacts, allowing the appropriate ILME 40 A male contacts to be selected separately for the conductor size required. Compatible silver-plated CXMA crimp contacts are available for conductors from 1.5–10 mm², providing flexibility for industrial power wiring while maintaining a secure and repeatable termination method.
With a 6 kV rated impulse withstand voltage, pollution degree 3 and mechanical durability of at least 500 mating cycles, the CQ4M03 provides dependable connectivity for industrial machinery and automation equipment. When fitted into a suitable ILME size 21.21 enclosure, the connector assembly can provide high levels of ingress protection for demanding operating environments.
Key Advantages
- 3 poles plus protective earth for compact three-phase or multipole power connections.
- 40 A, 400 V rating for demanding industrial power circuits.
- 6 kV impulse withstand voltage with pollution degree 3.
- Crimp termination provides secure and repeatable conductor connections.
- Compatible contacts cover conductor sizes from 1.5–10 mm².
- Compact size 21.21 format reduces connector installation space.
- Designed for at least 500 mating cycles for reliable repeated connection and disconnection.
Key Features
- ILME CQ series heavy-duty connector insert.
- Male insert configuration.
- 3 poles + PE.
- 40 A rated current.
- 400 V rated voltage.
- Crimp connection.
- Supplied without crimp contacts.
- Size 21.21 connector format.
- Maximum cable diameter of 7.5 mm.
- Operating temperature range from -40 °C to +125 °C.
Reliable High-Current Connections in a Compact Format
Industrial machinery often requires detachable power connections capable of carrying substantial current while using minimal installation space. The ILME CQ4M03 combines three power contacts with a dedicated protective-earth connection in the compact size 21.21 format, providing a practical interface for machinery, motors and industrial power distribution.
The separate crimp-contact system allows the appropriate contact to be selected for conductors from 1.5–10 mm² and securely terminated before insertion into the connector body. When paired with the corresponding female insert and installed in a compatible ILME size 21.21 enclosure, the CQ4M03 forms part of a robust heavy-duty connector system for reliable equipment installation and servicing.
Typical Applications
- Industrial machinery and production equipment.
- Three-phase motor and machine connections.
- Factory automation systems.
- Electrical control panels and cabinets.
- Conveyor and material handling equipment.
- Compact high-current detachable power interfaces.
