Why Choose the ILME CQEEF64 Female Insert?

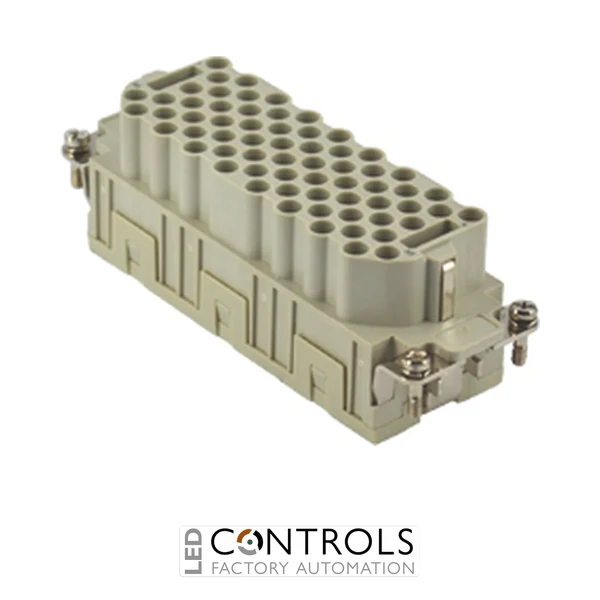

The ILME CQEEF64 is a high-density female industrial connector insert from the ILME CQEE series, designed for machinery, automation and industrial control applications requiring a large number of circuits within a single removable connector. It provides 64 poles plus protective earth with a rated current of 16 A and an IEC rated voltage of 500 V.
The CQEEF64 uses crimp termination, providing reliable electrical and mechanical connections when used with the appropriate separately selected crimp contacts and tooling. The insert itself is supplied without contacts, allowing contacts to be selected to suit the conductor size and application requirements.
Designed for the size 104.27 enclosure format, the CQEEF64 combines 64 female contact positions and protective earth in a compact 104 × 27 mm mounting footprint. Its polycarbonate insulating body, UL94 V-0 flammability rating, wide -40 °C to +125 °C operating range and minimum 500-cycle mechanical durability make it suitable for demanding industrial installations.
Key Advantages
- Provides 64 poles + protective earth in one high-density connector insert.
- 16 A rated current for industrial power, control and auxiliary circuits.
- 500 V IEC rated voltage for demanding industrial applications.
- Crimp termination provides reliable electrical and mechanical conductor connections.
- Female configuration for mating with the corresponding compatible male insert.
- Size 104.27 format provides high contact density within a standard heavy-duty connector enclosure.
- Wide -40 °C to +125 °C operating temperature range.
- At least 500 mating cycles for dependable repeated connection and disconnection.
Key Features
- ILME CQEE series female connector insert.
- 64 poles + protective earth.
- 16 A rated current.
- 500 V IEC rated voltage.
- Crimp connection.
- Female contact configuration.
- Size 104.27.
- 104 × 27 mm insert mounting format.
- Supplied without crimp contacts.
- Polycarbonate insulating body.
- UL94 V-0 flammability classification.
- Designed for compatible ILME heavy-duty connector hoods and housings.
High-Density Crimp Connectivity for Industrial Equipment
The ILME CQEEF64 enables 64 electrical circuits plus protective earth to be incorporated into one removable heavy-duty connector assembly. This high contact density is particularly valuable on complex machinery and automation systems where numerous control, auxiliary and power circuits must pass between electrical panels, machine sections or removable equipment.
Crimp termination provides a durable connection suitable for production wiring and repeated industrial use. Because the CQEEF64 is supplied without contacts, the appropriate ILME female crimp contacts can be selected separately for the required conductor size. Once populated and installed in a compatible size 104.27 enclosure, the insert provides a compact and serviceable alternative to large numbers of individual field connections.
Typical Applications
- Industrial machinery and production equipment.
- Factory automation and control systems.
- High-density electrical control connections.
- Electrical control panels and machine cabinets.
- Robotics and automated manufacturing systems.
- Conveyor and material handling equipment.
- Machine tools and processing equipment.
- Multipole power, control and auxiliary wiring.
