Why Choose the ILME CQEEM40 Male Connector Insert?

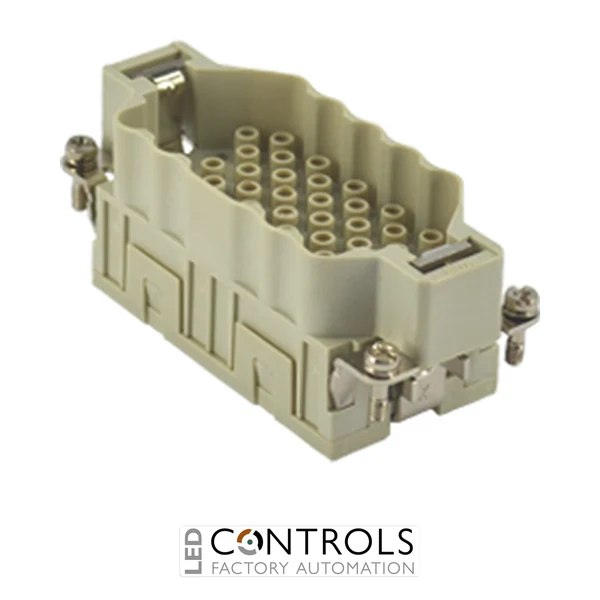

The ILME CQEEM40 is a high-density male industrial connector insert designed for reliable power and signal connections in machinery, automation and industrial electrical systems. As part of the established ILME CQEE series, it provides 40 poles plus protective earth within a compact size 77.27 format, making it particularly suitable for applications where a high concentration of contacts is required.
This connector insert uses crimp connection technology, providing secure, low-resistance electrical connections when used with suitable ILME contacts. Its robust polycarbonate construction, high insulation resistance and self-extinguishing material help ensure dependable performance in demanding industrial environments. The insert is designed for installation within compatible ILME rectangular connector enclosures.
With a rated current of 16 A and rated voltage of 500 V, the CQEEM40 provides dependable connectivity for industrial equipment, control cabinets and machine wiring. Its 40-pole plus earth configuration allows numerous circuits to be connected through a single compact heavy-duty connector assembly.
Key Advantages
- High-density 40-pole plus protective earth connector insert.
- 16 A rated current suitable for industrial power and control connections.
- 500 V rated voltage according to EN 61984 characteristics.
- Compact size 77.27 format helps maximise connection density.
- Reliable crimp termination for secure and low-resistance connections.
- Designed for use with compatible ILME heavy-duty rectangular connector enclosures.
Key Features
- ILME CQEE series male insert.
- 40 poles plus protective earth.
- 16 A rated current.
- 500 V rated voltage.
- 6 kV rated impulse withstand voltage.
- Crimp connection for removable contacts.
- High insulation resistance of ≥10 GΩ.
- Low contact resistance of ≤1 mΩ.
- Mechanical life of ≥500 mating cycles.
- Operating temperature range of -40 °C to +125 °C.
Reliable High-Density Connectivity for Industrial Machinery
Heavy-duty rectangular connectors allow multiple electrical circuits to be connected and disconnected efficiently while protecting wiring interfaces in industrial equipment. The ILME CQEE series is designed specifically for applications requiring a large number of contacts within a relatively compact connector footprint.
The CQEEM40 uses crimp contacts to provide durable electrical connections with low contact resistance. When installed in a suitable ILME enclosure, the complete connector assembly can provide enhanced environmental protection for machinery, automation equipment and industrial electrical installations.
Typical Applications
- Industrial machinery and production equipment.
- Factory automation and control systems.
- Electrical control panels and machine cabinets.
- Robotics and automated handling equipment.
- Packaging and processing machinery.
- High-density power, control and signal connections.
