Why Choose the ILME CQEEM64 Male Connector Insert?

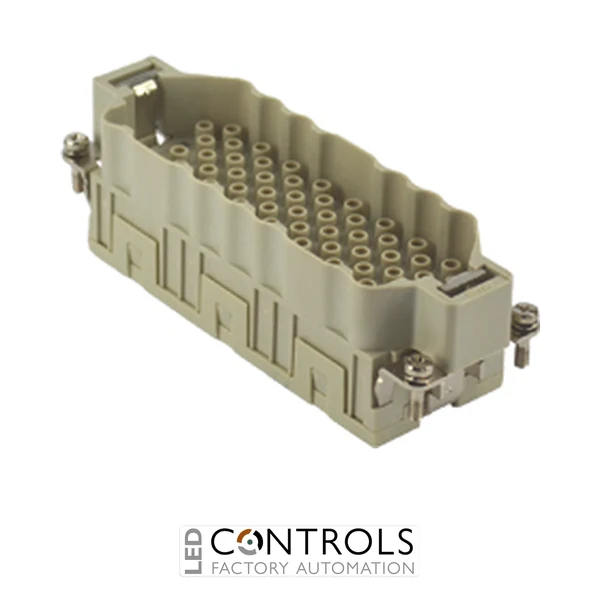

The ILME CQEEM64 is a high-density male heavy-duty multipole connector insert designed for industrial machinery, automation equipment and control systems requiring a large number of circuits within a single detachable connection. Featuring 64 poles plus protective earth, it provides an efficient solution for consolidating extensive control, signal and power wiring into one robust connector assembly.
The CQEEM64 uses crimp termination, allowing individual conductors to be terminated with compatible removable ILME contacts before insertion into the connector body. This approach provides consistent contact positioning, facilitates production wiring and allows individual contacts to be removed with the appropriate extraction tool when servicing or modifying an assembly.
With a 16 A rated current and the established 104.27 connector size, the CQEEM64 combines exceptionally high contact density with the mechanical convenience of ILME heavy-duty connector systems. Its male configuration is designed to mate with the corresponding compatible female insert, creating a maintainable multipole interface for complex industrial equipment.
Key Advantages
- 64 poles plus protective earth provide exceptionally high connection density.
- 16 A rated current supports a broad range of industrial circuits.
- Crimp termination provides consistent, production-friendly conductor connections.
- Removable contacts simplify individual circuit servicing and wiring modifications.
- 104.27 size integrates with compatible ILME heavy-duty connector enclosures.
- Single multipole interface can replace numerous separate electrical connections between machine sections.
Key Features
- ILME CQEEM64 male connector insert.
- 64 poles plus protective earth.
- 16 A rated current.
- Crimp contact termination.
- Male contact configuration.
- 104.27 connector size.
- High-density multipole layout for complex industrial wiring.
- Designed for use with compatible ILME crimp contacts.
- Contacts can be individually inserted and removed using suitable tooling.
- Designed for compatible ILME heavy-duty connector hoods and housings.
- Suitable for power, control and automation interconnections.
High-Density Multipole Connectivity for Complex Machinery
Industrial equipment with extensive control and auxiliary wiring can require dozens of conductors between machine sections, panels and removable assemblies. The ILME CQEEM64 combines 64 electrical contact positions and protective earth within one 104.27-format connector insert, helping reduce the number of individual plugs and wiring interfaces required in complex machinery.
Crimp technology is particularly useful for high-density connectors because each conductor can be prepared and inspected before its contact is inserted into the connector body. When populated with the appropriate ILME male crimp contacts and paired with the corresponding female insert and compatible enclosure, the CQEEM64 forms part of a secure, detachable and serviceable industrial connection system.
Typical Applications
- Complex industrial machinery and production lines.
- Factory automation and robotic equipment.
- Machine-to-panel multipole connections.
- Electrical control and instrumentation systems.
- Machine building and OEM equipment.
- High-density power, control and auxiliary wiring interfaces.
