Why Choose the ILME CQEF10 Female Connector Insert?

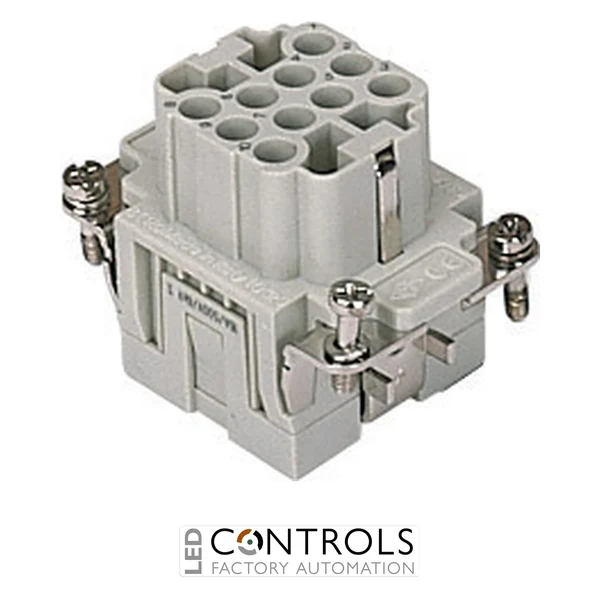

The ILME CQEF10 is a compact female heavy-duty multipole connector insert designed for reliable detachable electrical connections in industrial machinery, automation equipment and control systems. Featuring 10 poles plus protective earth, it provides a practical way to consolidate multiple power and control circuits within a single industrial connector assembly.
The CQEF10 uses crimp termination, allowing compatible female contacts to be terminated onto individual conductors before being inserted into the connector body. This termination method is particularly well suited to production wiring and repeatable machine assembly, while removable contacts facilitate individual circuit servicing or wiring changes when used with the appropriate ILME tooling.
With a rated current of 16 A and a compact 44.27 size format, the CQEF10 combines useful circuit capacity with space-efficient installation. Its female configuration is designed to mate with the corresponding compatible male insert and to form part of a complete ILME heavy-duty connector assembly when installed in a suitable hood or housing.
Key Advantages
- 10 poles plus protective earth for organised industrial multipole wiring.
- 16 A rated current supports a broad range of industrial circuits.
- Crimp termination provides consistent and production-friendly conductor connections.
- Removable contacts simplify individual circuit servicing and wiring modifications.
- Compact 44.27 size helps minimise connector installation space.
- Female configuration provides a detachable interface with the corresponding compatible male insert.
Key Features
- ILME CQEF10 female connector insert.
- 10 poles plus protective earth.
- 16 A rated current.
- Crimp contact termination.
- Female contact configuration.
- 44.27 connector size.
- Designed for use with compatible ILME female crimp contacts.
- Individual contacts can be inserted and removed using suitable tooling.
- Designed for compatible ILME heavy-duty connector hoods and housings.
- Suitable for industrial power, control and automation wiring.
Compact Crimp Connectivity for Industrial Equipment
Multipole connector inserts allow several electrical circuits to be combined into one organised and detachable interface. The ILME CQEF10 provides ten female contact positions plus protective earth within the compact 44.27 format, helping simplify connections between machine sections, control panels and removable industrial equipment.
Crimp termination allows each conductor and contact to be prepared before installation into the insert, supporting repeatable wiring and efficient assembly. When populated with suitable ILME female crimp contacts, paired with the corresponding male insert and installed within compatible enclosure components, the CQEF10 forms part of a robust and maintainable industrial connector system.
Typical Applications
- Industrial machinery and production equipment.
- Factory automation systems.
- Electrical control panels and cabinets.
- Machine building and OEM equipment.
- Motor, actuator and equipment interconnections.
- Compact industrial power and control wiring interfaces.
