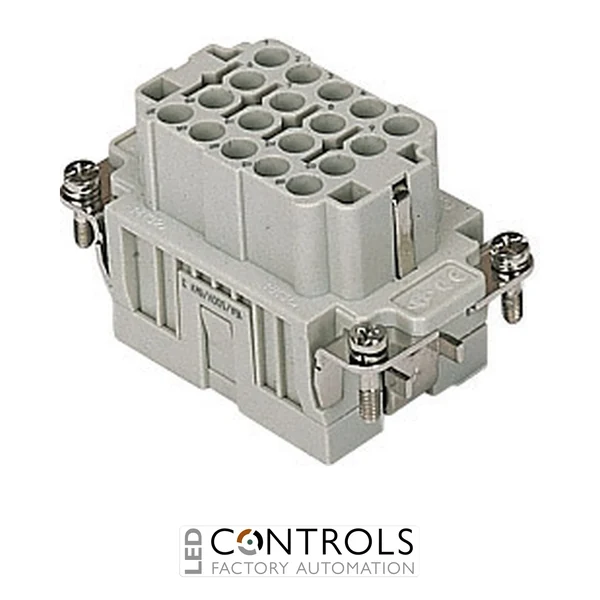

Why Choose the ILME CQEF18 Female Connector Insert?
The ILME CQEF18 is a high-quality female multipole connector insert designed for reliable electrical connections in industrial machinery, automation equipment and control systems. Part of the ILME CQE series, this insert provides 18 poles plus protective earth (PE) and uses crimp contacts for secure, vibration-resistant wiring.
Designed for ILME rectangular multipole connector assemblies, the CQEF18 combines a high contact density with dependable electrical performance. Its crimp connection system allows conductors to be terminated separately before the contacts are inserted into the connector body, supporting efficient assembly and maintenance in demanding industrial applications.
With a rated current of 16 A, rated voltage of 500 V and connector size 57.27, the CQEF18 is suitable for power, control and signal connections requiring numerous circuits within a compact heavy-duty connector enclosure.
Key Advantages
- 18 poles plus protective earth for high-density industrial connections.
- 16 A rated current suitable for power and control circuits.
- 500 V rated voltage for industrial electrical systems.
- Crimp connection provides secure and reliable conductor termination.
- Female insert designed for mating with the corresponding ILME male insert.
- Suitable for compatible ILME heavy-duty connector housings and hoods.
Key Features
- ILME CQE series multipole connector insert.
- 18 poles + PE configuration.
- Female contact configuration.
- Crimp connection system.
- 16 A rated current.
- 500 V rated voltage.
- 6 kV rated impulse withstand voltage.
- Size 57.27 connector format.
- Designed for at least 500 mating cycles.
Reliable Multipole Connections for Industrial Equipment
Crimp connector inserts such as the ILME CQEF18 provide reliable conductor termination by mechanically securing the conductor within a dedicated crimp contact. This method is widely used in industrial connector systems because it delivers consistent electrical performance and excellent resistance to vibration when correctly assembled.
The CQE series is designed for industrial multipole connector applications where numerous power, control or auxiliary circuits must be connected through a compact detachable interface. When installed in a suitable ILME enclosure, the connector assembly can provide a high degree of protection against environmental conditions encountered in industrial installations.
Typical Applications
- Industrial machinery and automation equipment.
- Electrical control panels and switchgear.
- Robotics and automated production systems.
- Machine tools and manufacturing equipment.
- Material handling and conveyor systems.
- Industrial power, control and signal interconnections.
