Why Choose the Ilme CQEF46N Female Insert?

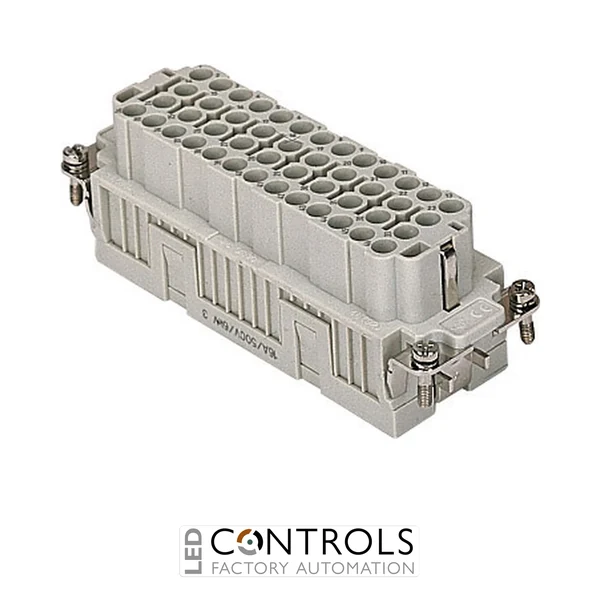

The Ilme CQEF46N is a high-density 46-pole plus earth female multipole connector insert designed for reliable signal and control connections in industrial machinery, automation equipment and electrical systems. Part of the Ilme CQE series, it combines a large number of contacts with a compact heavy-duty connector format, making it particularly useful where numerous circuits must be connected through a single detachable interface.
The CQEF46N uses crimp termination, providing secure, consistent and vibration-resistant conductor connections when assembled with compatible Ilme female crimp contacts. Its high contact density helps reduce the number of separate connectors required in complex machinery while simplifying installation, testing and maintenance.
With 46 poles plus protective earth and a rated current of 16 A, the CQEF46N is suited to multi-circuit industrial applications involving control, signal and power distribution. Its female contact configuration is designed to mate with the corresponding male CQE insert as part of a complete Ilme heavy-duty connector assembly.
Key Advantages
- High-density 46-pole plus earth female connector insert.
- 16 A rated current for versatile industrial electrical connections.
- Crimp termination provides secure and repeatable wiring.
- High contact density reduces the need for multiple separate connectors.
- Female configuration for mating with a corresponding Ilme CQE male insert.
- Ideal for complex automation, machinery and control-system wiring.
Key Features
- Ilme CQE series female multipole insert.
- 46 poles plus protective earth (46P+PE).
- Female contact configuration.
- 16 A rated current.
- Crimp contact termination.
- High-density contact arrangement for multi-circuit connections.
- Designed for use with compatible Ilme female crimp contacts.
- Suitable for heavy-duty industrial connector assemblies.
- Detachable format simplifies machinery installation and servicing.
High-Density Connectivity for Industrial Automation
High-density multipole connectors allow numerous electrical circuits to pass through one compact and detachable connection point. The Ilme CQEF46N provides 46 female contact positions plus protective earth, helping machine builders reduce connector count and organise complex wiring more efficiently.
Crimp technology provides reliable mechanical and electrical conductor termination and is particularly suitable for production wiring and applications exposed to vibration. When assembled with suitable contacts, a corresponding male insert and a compatible Ilme enclosure, the CQEF46N forms part of a robust connector system for demanding industrial environments.
Typical Applications
- Industrial machinery and production equipment.
- Factory automation and control systems.
- Robotics and automated handling equipment.
- Electrical control panels and cabinet assemblies.
- Multi-circuit signal and control connections.
- OEM machinery requiring high-density detachable wiring.
