Why Choose the Ilme CQEM10 Male Insert?

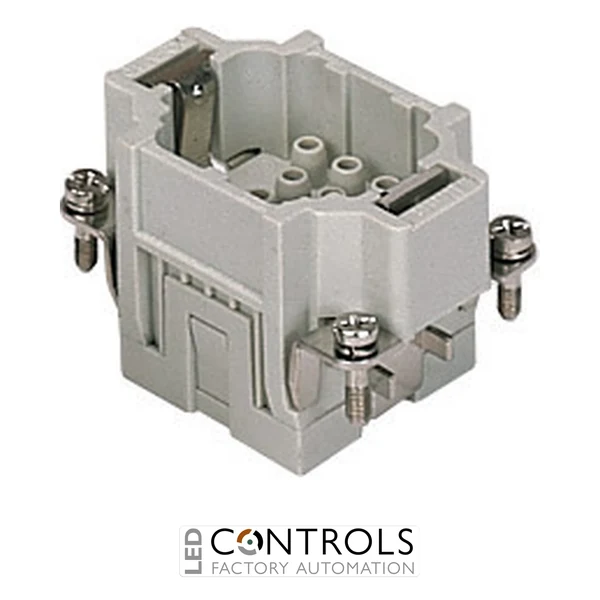

The Ilme CQEM10 is a compact 10-pole plus earth male multipole connector insert designed for reliable power, control and signal connections in industrial machinery and automation systems. Part of the high-density Ilme CQE series, it provides ten male contact positions plus protective earth within the compact size 44.27 connector format.
The CQEM10 uses crimp termination, providing secure and repeatable conductor connections when assembled with compatible Ilme male crimp contacts. This termination method is particularly suitable for production wiring and demanding machinery applications where resistance to vibration, consistent contact performance and efficient assembly are important.
Rated at 16 A, the CQEM10 provides a space-efficient solution for carrying multiple electrical circuits through a single detachable connector. When paired with the corresponding CQE female insert and a compatible Ilme size 44.27 hood or housing, it forms part of a robust heavy-duty connector system for industrial equipment.
Key Advantages
- Compact 10-pole plus earth male connector insert.
- 16 A rated current for industrial power, control and signal circuits.
- Crimp termination provides secure and repeatable connections.
- High contact density helps reduce connector space requirements.
- Male configuration for mating with the corresponding Ilme CQE female insert.
- Designed for compatible Ilme size 44.27 connector enclosures.
Key Features
- Ilme CQE series male multipole insert.
- 10 poles plus protective earth (10P+PE).
- Male contact configuration.
- 16 A rated current.
- Crimp contact termination.
- Compact size 44.27 connector format.
- Designed for compatible Ilme crimp contacts.
- High-density arrangement for multi-circuit industrial connections.
- Suitable for heavy-duty machinery and automation connector assemblies.
Compact High-Density Industrial Connectivity
High-density multipole connectors allow numerous electrical circuits to be grouped within one compact and detachable interface. The Ilme CQEM10 provides ten male contact positions plus protective earth, helping machine builders simplify wiring and reduce the space required for connector assemblies.
Crimp termination provides reliable mechanical and electrical performance and is well suited to industrial applications exposed to vibration or repeated servicing. With suitable contacts, a corresponding female insert and a compatible Ilme enclosure, the CQEM10 forms part of a durable connection system for modern machinery and automation equipment.
Typical Applications
- Industrial machinery and machine-building systems.
- Factory automation and production equipment.
- Robotics and automated handling systems.
- Electrical control panels and cabinet assemblies.
- Multi-circuit power, control and signal connections.
- OEM equipment requiring compact detachable wiring.
