Why Choose the ILME CQEM 32 Male Insert?

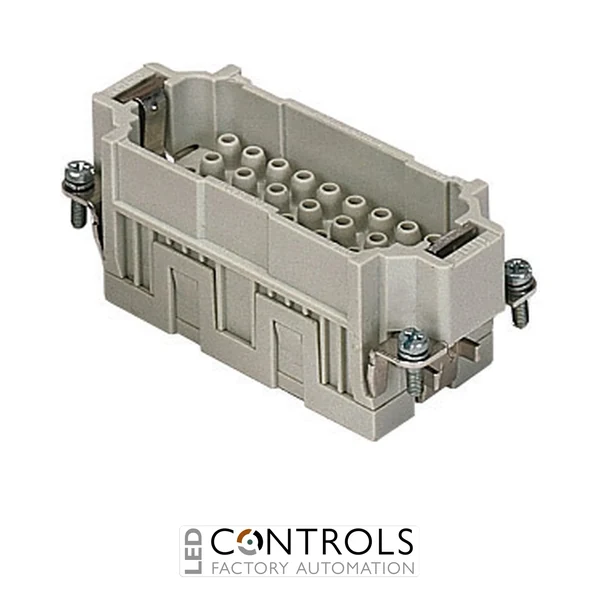

The ILME CQEM 32 is a high-density male industrial connector insert from the ILME CQE series, providing 32 poles plus protective earth (32P+PE) within the compact size 77.27 format. Designed for crimp termination, it provides a space-efficient solution for machinery, automation and control applications requiring numerous electrical circuits through a single detachable heavy-duty connector.
Rated at 16 A, 500 V with a 6 kV rated impulse withstand voltage and pollution degree 3, the CQEM 32 provides dependable electrical performance for industrial power, control and auxiliary circuits. It also carries a 600 V UL/CSA rated voltage and is manufactured to the requirements of EN 61984.
The CQEM 32 uses crimp connections with contacts selected separately to suit the required conductor size. Its durable polycarbonate construction, minimum 500 mating-cycle mechanical endurance and wide operating temperature range make it a robust choice for demanding industrial connector assemblies.
Key Advantages
- High-density 32 poles plus protective earth (32P+PE) configuration.
- Compact size 77.27 format maximises connection density.
- 16 A, 500 V rating for industrial power, control and auxiliary circuits.
- Professional crimp termination provides reliable and repeatable connections.
- Separate crimp contacts allow the contact size to be matched to the conductor.
- Designed for at least 500 mating cycles for dependable long-term service.
Key Features
- ILME CQE series male connector insert.
- 32 poles + PE.
- 16 A rated current.
- 500 V rated voltage.
- 6 kV rated impulse withstand voltage.
- Pollution degree 3.
- 600 V UL/CSA rated voltage.
- Crimp connection using separately selected contacts.
- Compact size 77.27 connector format.
- Mechanical durability of at least 500 mating cycles.
- Operating temperature range from -40 °C to +125 °C.
- Self-extinguishing UL 94 V-0 polycarbonate construction.
High-Density 32-Pole Crimp Connectivity
The ILME CQEM 32 is designed for installations where a large number of circuits must pass through a limited connector footprint. Its 32 electrical poles plus protective earth provide high connection density within the size 77.27 format, allowing power, control and auxiliary wiring to be consolidated into one detachable industrial connector interface.
Crimp termination provides consistent mechanical and electrical performance when the appropriate contacts and tooling are used. Because the CQEM 32 uses separately selected crimp contacts, installers can configure the connector for the conductor requirements of the application while retaining the serviceability and convenience of a removable heavy-duty connector assembly.
Typical Applications
- Industrial machinery and machine building.
- Factory automation and production equipment.
- Robotics and automated manufacturing systems.
- Control panels and electrical cabinets.
- Packaging and processing machinery.
- Conveyors and material handling systems.
- High-density power, control and auxiliary connections.
- Industrial equipment requiring compact detachable multipole connectivity.
