Why Choose the ILME CQEYF10 Female Connector Insert?

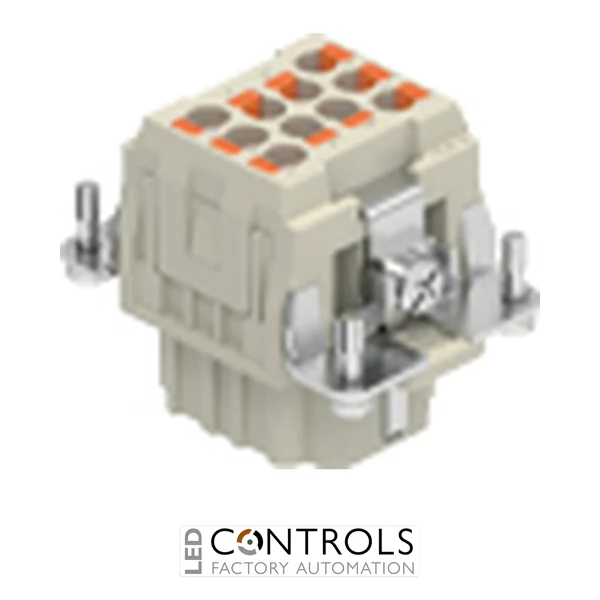

The ILME CQEYF10 is a compact and reliable female industrial connector insert designed for high-density electrical connections in machinery, automation and industrial control systems. As part of the ILME CQEY AXYR® series, it combines 10 poles plus protective earth with an innovative spring push-in connection system, providing fast and dependable conductor termination without the need for specialist crimping tools.
The AXYR® high-density spring terminal technology allows conductors to be connected directly using a push-in mechanism with actuator buttons. This tool-free connection method simplifies installation and maintenance while providing a secure connection designed to withstand the mechanical stresses and vibration encountered in industrial machinery.
With a rated current of 16 A, rated voltage of 500 V and size 44.27 format, the CQEYF10 provides a space-efficient solution for power, control and signal wiring. Its 10-pole plus earth configuration makes it suitable for machine building, control panels, production equipment and other applications requiring multiple circuits through a single heavy-duty connector assembly.
Key Advantages
- Compact 10-pole plus protective earth female connector insert.
- 16 A rated current for industrial power and control connections.
- 500 V rated voltage suitable for demanding industrial applications.
- AXYR® high-density spring push-in connection eliminates the need for crimping tools.
- Compact size 44.27 format maximises connection density.
- Spring terminal technology provides reliable connections in machinery exposed to vibration and mechanical stress.
Key Features
- ILME CQEY AXYR® series female insert.
- 10 poles plus protective earth.
- 16 A rated current.
- 500 V rated voltage.
- 6 kV rated impulse withstand voltage.
- AXYR® high-density spring terminal connection without tools.
- Push-in spring clamp with actuator button.

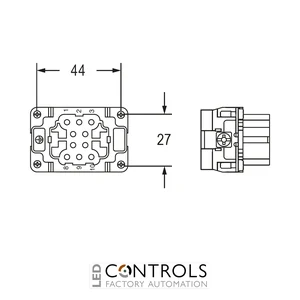

- Size 44.27 insert format.
- Designed for compatible ILME heavy-duty rectangular connector enclosures.
Reliable Tool-Free Connectivity for Industrial Machinery
Heavy-duty rectangular connectors allow multiple electrical circuits to be connected and disconnected through a single robust interface. The ILME CQEY series combines this established connector format with AXYR® technology, providing high-density spring terminals that simplify wiring while maintaining the compact contact arrangement normally associated with crimp connector systems.
The CQEYF10 is particularly useful where installation speed and straightforward maintenance are important. Its push-in spring terminals allow conductors to be terminated without crimping contacts, while the spring connection maintains consistent contact pressure to support reliable operation in industrial environments subject to vibration and mechanical stress.
Typical Applications
- Industrial machinery and production equipment.
- Factory automation and control systems.
- Electrical control panels and machine cabinets.
- Robotics and automated handling equipment.
- Packaging and processing machinery.
- Power, control and signal connections.
