Why Choose the ILME CQEYF46N Female AXYR® Connector Insert?

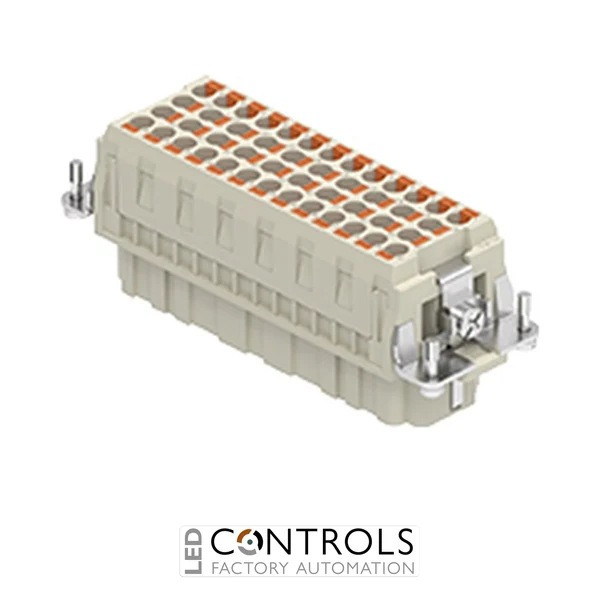

The ILME CQEYF46N is a high-density female multipole connector insert designed for reliable electrical connections in industrial machinery, automation equipment and control systems. Part of the ILME CQEY AXYR® series, this insert provides the 46 female contacts numbered 47–92 plus protective earth (PE) used as the second insert within a 92-pole connector arrangement.
The CQEYF46N features ILME's AXYR® high-density spring push-in terminal connection, enabling conductors to be terminated without conventional screw terminals or separately crimped contacts. Integral turned silver-plated contacts and spring-clamp technology provide fast assembly, dependable electrical contact and secure wiring for demanding industrial applications.
Rated at 16 A and 500 V with a 6 kV impulse withstand voltage, the CQEYF46N is designed for size 104.62 connector assemblies and carries contact numbering 47–92. It is paired with the corresponding CQEYF46 insert, numbered 1–46, to create a high-density 92-pole plus PE female connector configuration.
Key Advantages
- 46 contacts numbered 47–92 plus PE for the second half of a 92-pole connector arrangement.
- AXYR® spring push-in termination enables fast conductor connection without conventional screw or crimp termination.
- 16 A rated current suitable for industrial power and control circuits.
- 500 V rated voltage with a 6 kV impulse withstand rating.
- Integral turned silver-plated female contacts provide reliable electrical performance.
- Designed for size 104.62 high-density ILME heavy-duty connector assemblies.
Key Features
- ILME CQEY series AXYR® connector insert.
- Female insert numbered 47–92.
- Forms part of a 92 poles + PE connector configuration.
- AXYR® high-density spring terminal connection without tools.
- 16 A rated current.
- 500 V rated voltage.
- 6 kV rated impulse withstand voltage.
- Turned silver-plated female contacts.
- Size 104.62 connector format.
- Designed for at least 500 mating cycles.
High-Density AXYR® Spring Connection
The ILME AXYR® connection system uses spring push-in technology to simplify industrial wiring. Conductors are retained by spring pressure rather than conventional screw terminals, helping reduce installation time while providing stable electrical connections suitable for machinery, automation and other vibration-prone industrial environments.
The CQEYF46N is specifically identified with contacts 47–92 and complements the CQEYF46 insert numbered 1–46. Together they enable a 92-pole plus protective-earth female connection within the larger ILME size 104.62 enclosure format, providing substantial circuit density within a single detachable connector assembly.
Typical Applications
- Industrial machinery and machine building.
- Factory automation and production equipment.
- Electrical control panels and switchgear.
- Robotics and automated handling systems.
- Conveyor and material handling equipment.
- High-density power and control interconnections.
