Why Choose the Ilme CQEYM32 Male Insert?

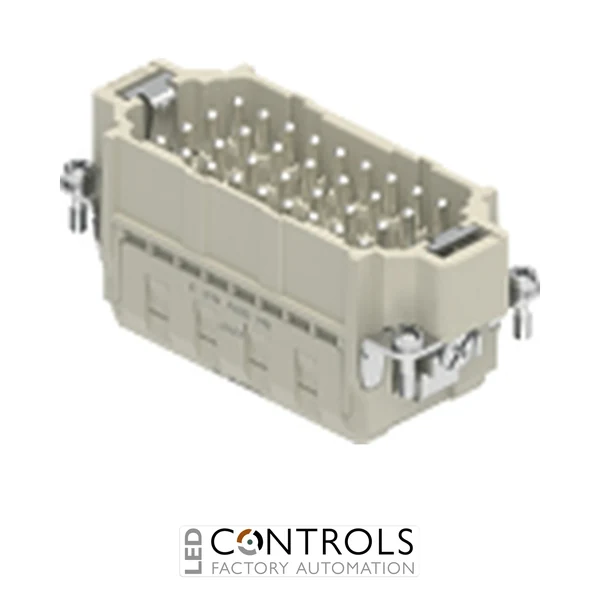

The Ilme CQEYM32 is a high-density 32-pole plus earth male multipole connector insert designed for reliable power, control and signal connections in industrial machinery and automation systems. Part of the Ilme CQE series, it combines a substantial number of contact positions with AXYR spring connection technology in the compact size 77.27 heavy-duty connector format.
The CQEYM32 uses AXYR spring terminals rather than conventional screw or separate crimp-contact termination. Spring connection technology provides fast, secure conductor termination while maintaining consistent contact pressure, making it particularly useful for industrial equipment where efficient assembly, vibration resistance and reduced maintenance are important.
With 32 poles plus protective earth and a rated current of 16 A, the CQEYM32 provides a space-efficient solution for complex multi-circuit connections. Its male configuration is designed to mate with the corresponding female CQEY insert and can be installed in compatible Ilme size 77.27 hoods and housings.
Key Advantages
- High-density 32-pole plus earth male connector insert.
- 16 A rated current for versatile industrial electrical circuits.
- AXYR spring connection technology enables efficient conductor termination.
- Spring terminals maintain consistent contact pressure without routine screw retightening.
- High contact density helps reduce the number and size of connector assemblies.
- Designed for compatible Ilme size 77.27 heavy-duty connector enclosures.
Key Features
- Ilme CQE series male multipole insert.
- 32 poles plus protective earth (32P+PE).
- Male connection.
- 16 A rated current.
- AXYR spring terminal connection.
- High-density contact arrangement for complex industrial wiring.
- Compact size 77.27 connector format.
- Spring-clamp technology supports fast and reliable installation.
- Suitable for power, control and signal circuits.
- Designed for heavy-duty machinery and automation connector assemblies.
High-Density Spring Connectivity for Industrial Automation
High-density multipole connectors allow numerous electrical circuits to be grouped into one detachable interface, helping simplify machinery wiring and reduce installation space. The Ilme CQEYM32 provides 32 male poles plus protective earth, making it particularly suitable for complex control and automation systems requiring many connections in a compact footprint.
AXYR spring termination further simplifies assembly by providing a secure conductor connection without conventional screw tightening. When combined with the corresponding female insert and a suitable Ilme enclosure, the CQEYM32 forms part of a robust and serviceable heavy-duty connector system for demanding industrial installations.
Typical Applications
- Industrial machinery and machine-building systems.
- Factory automation and production equipment.
- Robotics and automated handling systems.
- Electrical control panels and cabinet assemblies.
- High-density control and signal connections.
- OEM machinery requiring fast spring-terminal wiring.
