Why Choose the Ilme CQEYM32N Male Insert?

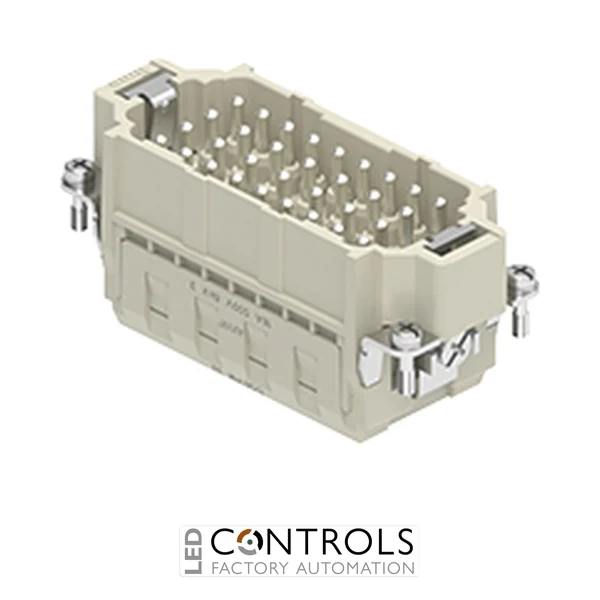

The Ilme CQEYM32N is a high-density 32-pole plus earth male multipole connector insert designed for reliable power, control and signal connections in industrial machinery and automation systems. Part of the Ilme CQE series, it combines 32 contact positions with AXYR spring termination in the compact size 77.27 heavy-duty connector format.
The CQEYM32N uses AXYR spring connection technology to provide fast, secure conductor termination without conventional screw tightening. Consistent spring pressure supports dependable electrical contact under industrial operating conditions, while the high-density layout helps simplify complex machine wiring and reduce the number of separate connector assemblies required.
This N version carries contact identification 33–64, making it suitable for installations where two 32-pole inserts are used as part of a larger numbered connection arrangement. With 32 poles plus protective earth and a rated current of 16 A, the CQEYM32N provides an efficient solution for multi-circuit industrial connections in compatible Ilme size 77.27 enclosures.
Key Advantages
- High-density 32-pole plus earth male connector insert.
- 16 A rated current for industrial power, control and signal circuits.
- AXYR spring termination enables fast and secure conductor wiring.
- Contact identification 33–64 supports clearly organised multi-insert installations.
- Spring technology maintains consistent contact pressure without routine terminal retightening.
- Compact size 77.27 format provides high connection density.
Key Features
- Ilme CQE series male multipole insert.
- 32 poles plus protective earth (32P+PE).
- Contact numbering 33–64.
- Male contact configuration.
- 16 A rated current.
- AXYR spring connection technology.
- High-density arrangement for complex industrial wiring.
- Compact size 77.27 connector format.
- Suitable for power, control and signal connections.
- Designed for compatible Ilme heavy-duty connector hoods and housings.
High-Density Spring Connectivity for Industrial Automation
High-density multipole connectors allow numerous circuits to be grouped within one detachable electrical interface. The Ilme CQEYM32N provides 32 male contact positions plus protective earth, helping machine builders and automation engineers organise complex wiring while conserving valuable installation space.
Its AXYR spring terminals streamline conductor installation and provide consistent clamping pressure, while the 33–64 contact numbering makes the insert particularly useful in larger connector configurations requiring clearly differentiated circuits. When paired with the corresponding female insert and a suitable Ilme enclosure, the CQEYM32N forms part of a robust and serviceable industrial connector system.
Typical Applications
- Industrial machinery and machine-building systems.
- Factory automation and production equipment.
- Robotics and automated handling systems.
- Electrical control panels and cabinet assemblies.
- High-density control and signal interconnections.
- Multi-insert connector systems requiring contact numbering 33–64.
