Why Choose the ILME CQEYM46 Male Insert?

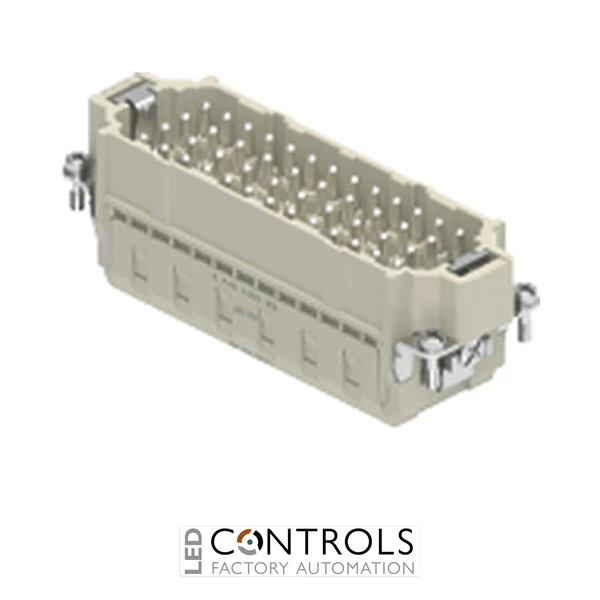

The ILME CQEYM46 is a high-density 46-pole plus protective earth male connector insert featuring ILME's AXYR® spring push-in terminal technology. Part of the ILME CQEY series, it provides fast, tool-free conductor termination while delivering a rated current of 16 A and rated voltage of 500 V in the standard size 104.27 format.
Unlike conventional crimp inserts that require separate contacts and crimping tools, the CQEYM46 incorporates turned silver-plated contacts and high-density spring terminals directly into the insert. The AXYR® push-in system is designed to simplify wiring and maintenance, making it particularly useful for densely populated machinery and automation connections where installation efficiency is important.

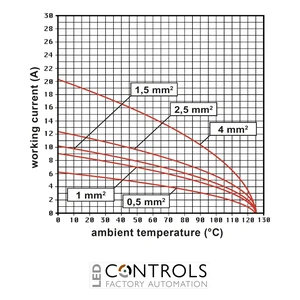

The CQEYM46 is rated at 16 A, 500 V, 6 kV with pollution degree 3 according to EN 61984. It also provides at least 500 mating cycles, insulation resistance of at least 10 GΩ and an operating temperature range from -40 °C to +125 °C, supporting reliable service in demanding industrial environments.
Key Advantages
- 46 poles plus protective earth provide a high-density industrial connection in one insert.
- AXYR® spring push-in technology enables fast conductor termination without specialist connection tools.
- 16 A, 500 V rating supports a broad range of industrial power, control and auxiliary circuits.
- Integrated turned silver-plated contacts eliminate the need to order and install separate crimp contacts.
- Compact size 104.27 format accommodates a large number of circuits within a standard heavy-duty connector footprint.
- Designed for at least 500 mating cycles for reliable repeated connection and disconnection.
Key Features
- ILME CQEY series heavy-duty connector insert.
- Male insert configuration.
- 46 poles + PE.
- AXYR® high-density spring terminal connection.
- Tool-free push-in conductor termination.
- 16 A rated current.
- 500 V rated voltage.
- 6 kV rated impulse withstand voltage.
- Integrated turned silver-plated contacts.

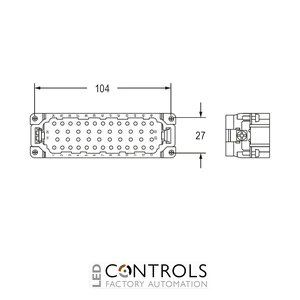

- Size 104.27 connector format.
- Polycarbonate insulating body with UL 94 V-0 flammability classification.
- Operating temperature range from -40 °C to +125 °C.
The ILME AXYR® connection system is designed to reduce wiring time while maintaining dependable spring pressure on the conductor. The CQEYM46 integrates 46 male contact positions plus protective earth with high-density push-in terminals, allowing conductors to be connected without the separate contacts and crimping operations required by conventional crimp inserts.
When paired with the corresponding female CQEY insert and installed in a compatible ILME size 104.27 enclosure, the CQEYM46 forms a robust multipole connector suitable for machinery, automation and control installations. Suitable enclosure selection can provide IP65, IP66, IP68 or IP69 ingress protection for the completed connector assembly.
Typical Applications
- Industrial machinery and production equipment.
- Factory automation and robotic systems.
- High-density control cabinet connections.
- Machine power, control and auxiliary circuits.
- Conveyor and material handling equipment.
- Industrial installations requiring fast, tool-free field wiring.
