Why Choose the ILME CQEYM46N Male Insert?

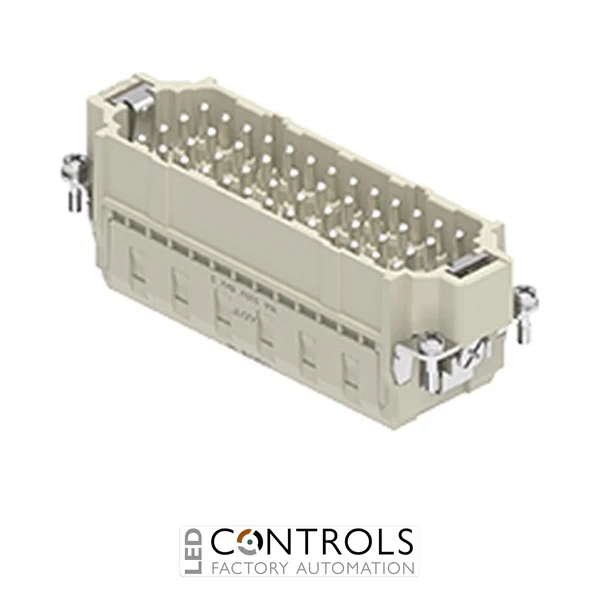

The ILME CQEYM46N is a high-density 46-pole plus protective earth male connector insert featuring ILME AXYR® push-in spring terminal technology. Designed as the second insert in a 92-pole configuration, its terminals are numbered 47–92 for straightforward circuit identification within large multipole industrial connections.
Rated at 16 A and 500 V, the CQEYM46N uses tool-free AXYR® spring termination to provide the contact density associated with crimp connector systems without requiring individual crimp contacts or a dedicated crimping process. Conductors are inserted in axis with the contact, helping simplify wiring in machinery, automation and control installations.
The CQEYM46N is intended for the extended size 104.62 connector arrangement, where it complements the CQEYM46 insert numbered 1–46 to create a complete 92-pole plus PE male connection. Silver-plated contacts, high insulation resistance and resistance to mechanical stresses and vibration make the AXYR® system particularly suitable for demanding industrial equipment.
Key Advantages
- 46 poles plus protective earth with terminal numbering from 47–92.
- Combines with the corresponding 1–46 insert to create a 92-pole + PE connector system.
- AXYR® tool-free push-in spring connection helps reduce wiring and assembly time.
- 16 A, 500 V rating supports industrial power, control and auxiliary circuits.
- High contact density comparable with conventional crimp connector arrangements.
- Silver-plated contacts are integrated into the insert, eliminating separately ordered crimp contacts.
- Spring connection technology provides reliable conductor retention under mechanical stress and vibration.
Key Features
- ILME CQEY series heavy-duty connector insert.
- AXYR® high-density connection technology.
- Male insert with male contacts.
- 46 poles + PE.
- Contact numbering from 47–92.
- Designed for a complete 92-pole + PE connector arrangement.
- Tool-free push-in spring terminal connection.
- 16 A rated current.
- 500 V rated voltage.
- 6 kV rated impulse withstand voltage.
- Silver-plated contacts.
- Designed for extended size 104.62 connector assemblies.
Reliable High-Density Tool-Free Industrial Connections
The ILME AXYR® system combines the wiring convenience of a push-in spring terminal with the high contact density traditionally associated with crimp inserts. Conductors are connected directly to the integrated contacts without a separate crimping operation, helping streamline production wiring and simplify field maintenance while retaining secure spring pressure on the conductor.
The CQEYM46N carries contact numbers 47–92 and is designed to operate alongside a CQEYM46 numbered 1–46 in an extended size 104.62 enclosure arrangement. Together, the two inserts provide a 92-pole plus protective earth interface suitable for equipment requiring a particularly large number of detachable circuits within one heavy-duty connector assembly.
Typical Applications
- Industrial machinery and production equipment.
- Factory automation and robotic systems.
- High-density control cabinet interfaces.
- Machine power, control and auxiliary wiring.
- Conveyor and material handling systems.
- Industrial equipment requiring 92-pole multipole connections.
- Applications requiring fast, tool-free push-in wiring.
