Why Choose the ILME CQF04/2 Female Connector Insert?

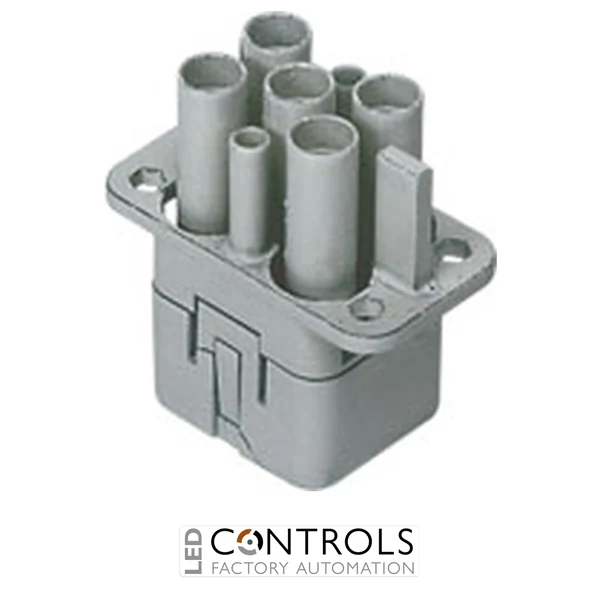

The ILME CQF04/2 is a compact female industrial connector insert designed for combined power and auxiliary connections in machinery, automation and industrial electrical systems. As part of the established ILME CQ series, it combines four high-current poles, two auxiliary poles and protective earth within a compact size 32.13 connector format.
This insert uses crimp connection technology with separate contacts selected to suit the conductor size and circuit requirements. The four main poles are rated at 40 A for power connections, while the two auxiliary poles are rated at 10 A for control or signal circuits. This mixed-contact arrangement enables power and auxiliary connections to be incorporated into a single compact heavy-duty connector assembly.
The four main poles are rated at 40 A and 400/690 V, while the two auxiliary poles are rated at 10 A and 250 V. The CQF04/2 is therefore particularly suited to industrial machinery where motor power and associated control or monitoring circuits need to be connected through the same interface.
Key Advantages
- Combined 4-pole power, 2-pole auxiliary and protective earth connector insert.
- Four main contacts rated at 40 A and 400/690 V.
- Two auxiliary contacts rated at 10 A and 250 V.
- Compact size 32.13 format saves installation space.
- Reliable crimp connection for secure industrial wiring.
- Allows power and auxiliary control circuits to be combined within one heavy-duty connector assembly.
Key Features
- ILME CQ series female insert.
- 4 main poles + 2 auxiliary poles + protective earth.
- Main contacts rated at 40 A.
- Auxiliary contacts rated at 10 A.
- Main circuit voltage rating of 400/690 V.
- Auxiliary circuit voltage rating of 250 V.
- Main circuit impulse withstand voltage of 6 kV.
- Auxiliary circuit impulse withstand voltage of 4 kV.
- Crimp termination with contacts ordered separately.
- Compact size 32.13 connector format.
Combined Power and Control Connectivity for Industrial Machinery
Mixed-contact heavy-duty connectors allow power and auxiliary circuits to pass through a single compact connection point. The ILME CQF04/2 combines four 40 A power contacts with two smaller 10 A auxiliary contacts, making it possible to connect equipment power together with associated control, monitoring or interlock circuits.
The crimp connection system provides secure, low-resistance terminations and allows contacts to be selected according to conductor size. When installed in a suitable ILME enclosure, the CQF04/2 forms part of a robust industrial connector assembly suitable for machinery, motor connections and automation equipment exposed to demanding operating conditions.
Typical Applications
- Industrial machinery and production equipment.
- Electric motor power and control connections.
- Factory automation and control systems.
- Robotics and automated handling equipment.
- Packaging and processing machinery.
- Combined power, control and auxiliary circuit connections.
