Why Choose the Ilme CQF07 Female Crimp Insert?

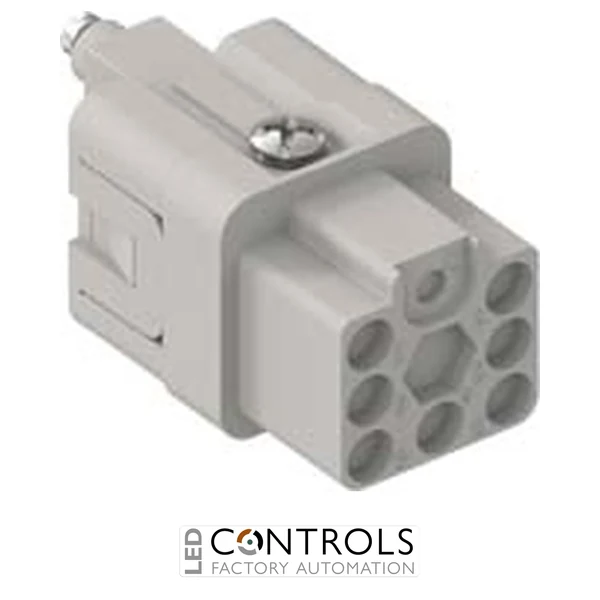

The Ilme CQF07 is a compact female multipole connector insert designed for reliable electrical connections in industrial machinery, automation systems and control equipment. Part of the Ilme CQ series, it provides 7 poles plus protective earth (7+PE) and uses crimp termination for secure, serviceable conductor connections.
Designed for compatible Ilme rectangular connector housings, the CQF07 has a rated current of 10 A and rated voltage of 400 V. Its compact 21.21 size makes it particularly suitable where multiple power, control or signal circuits need to be accommodated within a space-efficient industrial connector assembly.
The CQF07 features a polycarbonate insulating body and is designed for separately ordered female crimp contacts covering conductor cross-sections from 0.14–2.5 mm². With a rated impulse withstand voltage of 6 kV, pollution degree 3 and an operating temperature range of -40 to +125 °C, it provides dependable performance for demanding industrial connectivity applications.
Key Advantages
- Compact 7-pole plus protective earth female insert for industrial connectors.
- 10 A rated current suitable for power, control and signal circuits.
- 400 V rated voltage for industrial electrical applications.
- Reliable crimp termination for secure conductor connections.
- Compact 21.21 size helps minimise connector footprint.
- Wide 0.14–2.5 mm² conductor range with appropriate contacts.
- Designed for at least 500 mating cycles for dependable service life.
Key Features
- Ilme CQ series multipole connector insert.
- Female connection configuration.
- 7 poles plus protective earth (7+PE).
- 10 A rated current.
- 400 V rated voltage.
- 6 kV rated impulse withstand voltage.
- Crimp connection with contacts ordered separately.
- Compact 21.21 size format.
- Polycarbonate insulating body in RAL 7032 grey.
- UL 94 V-0 flammability classification.
Reliable Crimp Connectivity for Industrial Equipment
Multipole inserts such as the Ilme CQF07 allow several electrical circuits and a protective earth connection to be combined within one compact rectangular connector assembly. Crimp termination provides a secure electrical and mechanical connection between the conductor and contact, while removable contacts simplify assembly, servicing and wiring modifications.
The CQF07 is supplied as an insert without contacts and is designed for compatible Ilme female crimp contacts selected according to the required conductor size. When installed in an appropriate Ilme enclosure, the connector system can provide enhanced environmental protection according to the enclosure configuration, making the CQF07 suitable for a wide range of industrial machinery and automation installations.
Typical Applications
- Industrial machinery and production equipment.
- Factory automation and control systems.
- Electrical control panels and switchgear assemblies.
- Robotics and automated manufacturing equipment.
- Conveyors and material handling systems.
- Packaging and processing machinery.
- Machine building and OEM equipment.
- Industrial power, control and signal connections.
