Why Choose the ILME CQF17 Female Connector Insert?

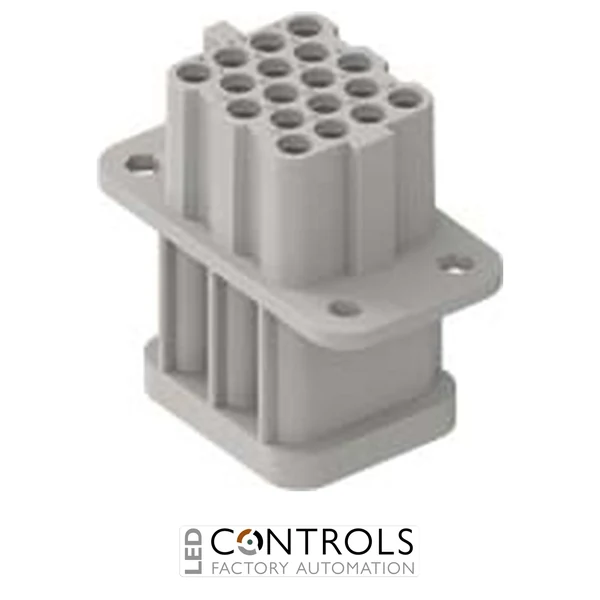

The ILME CQF17 is a compact female multipole connector insert designed for reliable electrical connections in industrial machinery, automation equipment and control systems. Part of the ILME CQ series, it provides 17 poles plus protective earth (PE) in the compact size 32.13 format and uses separate crimp contacts for secure conductor termination.
Designed for ILME rectangular multipole connector assemblies, the CQF17 combines high contact density with dependable electrical performance. Its crimp connection system supports conductors from 0.14–2.5 mm² (AWG 26–14), with compatible female crimp contacts ordered separately and fitted into the insert after termination.
With a rated current of 10 A and rated voltage of 160 V, the CQF17 is suitable for multi-circuit control, signal and auxiliary connections in industrial equipment. Its compact 32.13 size allows 17 circuits plus protective earth to be accommodated within a space-efficient heavy-duty connector assembly.
Key Advantages
- 17 poles plus protective earth for high-density industrial connections.
- 10 A rated current for control, auxiliary and other suitable electrical circuits.
- 160 V rated voltage according to the ILME CQ17 specification.
- Crimp termination provides secure and repeatable conductor connections.
- Supports conductor sizes from 0.14–2.5 mm² (AWG 26–14).
- Compact size 32.13 format for space-efficient connector assemblies.
Key Features
- ILME CQ series multipole connector insert.
- 17 poles + PE configuration.
- Female contact configuration.
- Crimp connection system with contacts ordered separately.
- 10 A rated current.
- 160 V rated voltage.
- 2.5 kV rated impulse withstand voltage.
- Size 32.13 connector format.
- Self-extinguishing thermoplastic insulating body.
- Designed for at least 500 mating cycles.
Reliable Crimp Connections for Industrial Equipment
Crimp connector inserts such as the ILME CQF17 provide dependable conductor termination by mechanically securing each conductor within a dedicated crimp contact. When correctly terminated with the appropriate tooling, crimp connections deliver consistent electrical performance and strong resistance to vibration, making them well suited to industrial machinery and automation applications.
The CQF17 combines 17 electrical contacts plus protective earth within the compact size 32.13 format. Compatible 10 A crimp contacts are selected according to conductor cross-section and ordered separately, allowing the connector to be configured for the wiring requirements of the installation.
Typical Applications
- Industrial machinery and machine building.
- Factory automation and production equipment.
- Electrical control panels and switchgear.
- Robotics and automated handling systems.
- Conveyor and material handling equipment.
- Multi-circuit control, signal and auxiliary connections.
